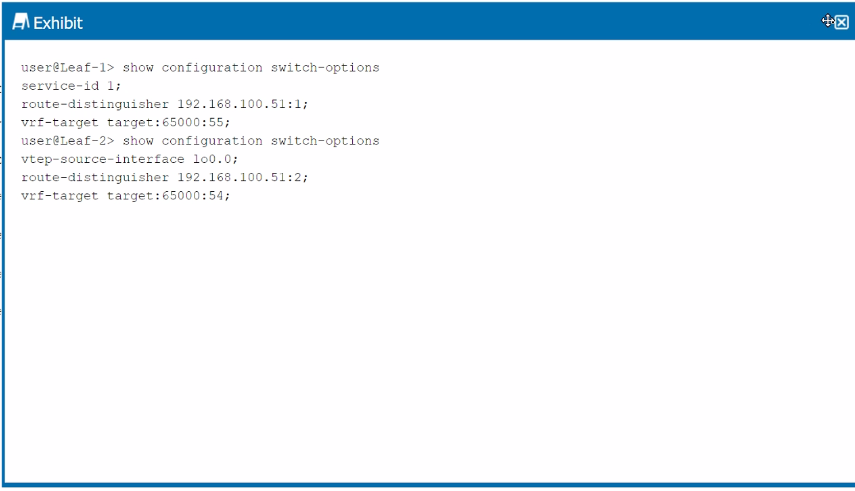

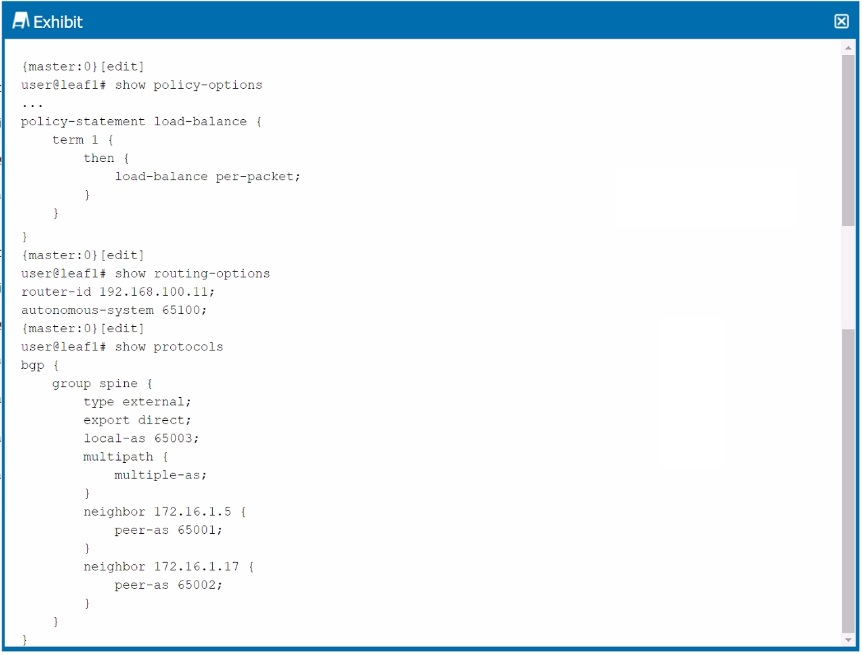

Important Juniper JN0-683 Exam Questions

Answer: C, D

Explanation:

Understanding the Exhibit Setup:

The network diagram shows an EVPN-VXLAN setup, a common design for modern data centers enabling Layer 2 and Layer 3 services over an IP fabric.

Leaf1 and Leaf2 are the leaf switches connected to Server1 and Server2, respectively, with each server in a different subnet (172.16.1.0/24 and 172.16.2.0/24).

Spine1 and Spine2 are part of the IP fabric, interconnecting the leaf switches.

EVPN-VXLAN Basics:

EVPN (Ethernet VPN) provides Layer 2 and Layer 3 VPN services using MP-BGP.

VXLAN (Virtual Extensible LAN) encapsulates Layer 2 frames into Layer 3 packets for transmission across an IP network.

VTEP (VXLAN Tunnel Endpoint) interfaces on leaf devices handle VXLAN encapsulation and decapsulation.

Integrated Routing and Bridging (IRB):

IRB interfaces are required on leaf1 and leaf2 (where the endpoints are directly connected) to route between different subnets (in this case, between 172.16.1.0/24 and 172.16.2.0/24).

The IRB interfaces provide the necessary L3 gateway functions for inter-subnet communication.

Traffic Flow Analysis:

Traffic from Server1 (172.16.1.1) destined for Server2 (172.16.2.1) must traverse from leaf1 to leaf2.

The traffic will be VXLAN encapsulated on leaf1, sent over the IP fabric, and decapsulated on leaf2.

Since the communication is between different subnets, the IRB interfaces on leaf1 and leaf2 are crucial for routing the traffic correctly.

Correct Statements:

C . An IRB Interface must be configured on leaf1 and leaf2: This is necessary to perform the inter-subnet routing for traffic between Server1 and Server2.

D . Traffic from server1 to server2 will transit the VXLAN tunnel between leaf1 and leaf2: This describes the correct VXLAN operation where the traffic is encapsulated by leaf1 and decapsulated by leaf2.

Data Center Reference:

In EVPN-VXLAN architectures, the leaf switches often handle both Layer 2 switching and Layer 3 routing via IRB interfaces. This allows for efficient routing within the data center fabric without the need to involve the spine switches for every routing decision.

The described traffic flow aligns with standard EVPN-VXLAN designs, where direct VXLAN tunnels between leaf switches enable seamless and scalable communication across a data center network.

Answer: B, C

Explanation:

Multicast-Signaled VXLAN:

In traditional multicast-signaled VXLAN, VTEPs (VXLAN Tunnel Endpoints) use multicast to flood and learn about remote VTEPs. This method relies on multicast in the underlay network to distribute BUM (Broadcast, Unknown unicast, and Multicast) traffic.

This approach can be resource-intensive due to the need for multicast group management and increased network traffic, especially in large deployments.

EVPN-Signaled VXLAN:

EVPN-signaled VXLAN uses BGP (Border Gateway Protocol) to signal the presence of VTEPs and distribute MAC address information. BGP is used for VTEP autodiscovery and the distribution of endpoint information.

This method is more efficient because it reduces the reliance on multicast, instead using BGP control-plane signaling to handle VTEP discovery and MAC learning, which reduces the overhead on the network and improves scalability.

Correct Statements:

B . An EVPN-signaled VXLAN can perform autodiscovery of VTEPs using BGP: This is correct because EVPN uses BGP for VTEP autodiscovery, making it more efficient and scalable compared to multicast-based methods.

C . An EVPN-signaled VXLAN is less resource-intensive: This is correct because it eliminates the need for multicast flooding in the underlay, instead using BGP for signaling, which is less demanding on network resources.

Incorrect Statements:

A . An EVPN-signaled VXLAN can perform autodiscovery of VTEPs using IS-IS: This is incorrect because EVPN relies on BGP, not IS-IS, for VTEP discovery and signaling.

D . An EVPN-signaled VXLAN features slower and more complete convergence: This is incorrect; EVPN with BGP typically provides faster convergence due to its use of a control plane rather than relying on data plane learning.

Data Center Reference:

EVPN-VXLAN is widely adopted in modern data center designs due to its scalability, efficiency, and reduced resource consumption compared to multicast-based VXLAN solutions. It leverages the strengths of BGP for control-plane-driven operations, resulting in more efficient and scalable networks.

Answer: C, D

Explanation:

In the provided network configuration, Host A is in VLAN 100 and Host B is in VLAN 200. The issue arises because these two hosts are unable to communicate, which indicates that either the interfaces are not properly linked to their respective VLANs, or there is a missing static route required for inter-VLAN routing.

Step-by-Step Analysis:

VLAN Assignment:

The exhibit shows that irb.200 is correctly associated with VLAN 200 in the configuration. However, there is no corresponding irb.100 for VLAN 100. Without irb.100, the network lacks the logical interface to handle routing for VLAN 100. Thus, adding irb.100 to VLAN 100 is necessary.

Command to solve this:

set vlans vn100 13-interface irb.100

Static Route Configuration:

For inter-VLAN routing to occur, a static route needs to be configured that allows traffic to pass between different subnets (in this case, between VLAN 100 and VLAN 200). The command set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10 would add a static route that directs all traffic from VLAN 100 to the correct gateway (192.168.200.10), which is necessary to route traffic between the two VLANs.

Command to solve this:

set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10

Explanation of Incorrect Options:

Option A (delete vlans vn200 13-interface irb.200): This would remove the logical interface associated with VLAN 200, which is not desired because we need VLAN 200 to remain active and properly routed.

Option B (set interfaces irb unit 100 family inet address 192-168.100.1): This command would incorrectly assign an IP address that does not correspond with the subnet of VLAN 100 (192.168.200.1/24). This could create a misconfiguration, leading to routing issues.

Data Center Reference:

For a Data Center, proper VLAN management and static routing are crucial for ensuring that different network segments can communicate effectively, especially when dealing with separated subnets or zones like in different VLANs. This aligns with best practices in DCIM (Data Center Infrastructure Management) which stress the importance of proper network configuration to avoid downtime and ensure seamless communication between all critical IT infrastructure components.

Ensuring that the correct interfaces are associated with the correct VLANs and having the proper static routes in place are both essential steps in maintaining a robust and reliable data center network.

This detailed analysis reflects best practices as noted in standard data center design and network configuration guides.

Answer: A, D, E

Explanation:

MAC Move Limiting:

MAC move limiting is a security feature used in network switches to detect and mitigate rapid changes in MAC address locations, which could indicate a network issue or an attack such as MAC flapping or spoofing.

When a MAC address is learned on a different interface than it was previously learned, the switch can take various actions to prevent potential issues.

Available Actions:

A . drop: This action drops packets from the MAC address if it violates the move limit, effectively blocking communication from the offending MAC address.

D . log: This action logs the MAC move event without disrupting traffic, allowing network administrators to monitor and investigate the event.

E . shutdown: This action shuts down the interface on which the MAC address violation occurred, effectively stopping all traffic on that interface to prevent further issues.

Other Actions (Not Correct):

B . filter: Filtering is not typically associated with MAC move limiting; it generally refers to applying ACLs or other mechanisms to filter traffic.

C . enable: This is not an action related to MAC move limiting, as it does not represent a specific reaction to a MAC move event.

Data Center Reference:

MAC move limiting is crucial for maintaining network stability and security, particularly in environments with dynamic or large-scale Layer 2 networks where MAC addresses might frequently change locations.

Answer: B, D

Explanation:

Understanding the Configuration:

The exhibit shows configurations for two VRFs (Customer_A and Customer_B) with specific VLANs and VNIs assigned. Each VRF has interfaces (IRBs) associated with particular VLANs.

Communication Between VLANs and Routing Instances:

Option B: VLAN 400 (irb.400) is part of Customer_B, and there is no direct connection or routing between Customer_A and Customer_B in the configuration provided. Therefore, devices in irb.400 cannot communicate directly with devices in the Customer_A routing instance.

Option D: Since irb.400 (VLAN 400) and irb.800 (VLAN 800) are part of the same routing instance (Customer_B), they can communicate over the fabric using VXLAN encapsulation.

Conclusion:

Option B: Correct---There is no direct communication between devices in irb.400 (Customer_B) and routing instance Customer_A.

Option D: Correct---Devices in VLAN 400 and VLAN 800 can communicate within the Customer_B routing instance over the fabric.
