Answer: B

Explanation:

In Apstra 5.1, the cabling map is part of the blueprint's intended physical topology. Cable-map edits are performed in the Staged workspace because Staged is where you modify intent (what the fabric should look like) before committing those changes and deploying them. The Staged Physical Links view provides both a tabular and topology-oriented representation of spine-to-leaf and other physical connections. When Apstra auto-assigns interfaces during initial build, the logical mapping may not match the real patching in the data center. The cabling map editor allows you to override interface names (and where applicable, link addressing metadata) so the blueprint accurately reflects the actual patch panel and switchport usage.

This accuracy is critical in a Junos v24.4 leaf-spine fabric because underlay correctness depends on the real physical adjacencies: link membership, LAG expectations (where used), and the resulting BGP neighbor relationships that carry EVPN signaling for VXLAN overlays. By updating the cabling map in Staged, you ensure Apstra can correctly validate neighbor discovery, verify intent, and produce consistent device configuration aligned to the real-world wiring. After making the cabling corrections, you commit the staged changes and then deploy/apply so that Apstra's intent and the running network converge. This work is not performed under Active (which reflects deployed state) and is not a function of Connectivity Templates (which are for endpoint/service attachment rather than fabric cabling).

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/cabling-map-edit-datacenter.html

https://www.juniper.net/documentation/us/en/software/apstra6.0/apstra-user-guide/topics/topic-map/cabling-map-edit-datacenter.html

https://www.juniper.net/documentation/us/en/software/jvd/jvd-dcfabric-5-stage/configuration_walkthrough.html

Answer: B

Explanation:

In Apstra 5.1, this screen represents a configuration deviation workflow: Apstra is comparing the intended (golden) configuration it generated from blueprint intent against the actual configuration currently on the device. When an operator makes a change directly on the switch CLI (for example, on a Junos v24.4 leaf), Apstra detects the difference and flags it as drift because it did not originate from the blueprint's intent model.

Clicking Accept Changes tells Apstra to adopt the device's current CLI state as the new accepted baseline for that device, effectively incorporating the observed CLI delta into Apstra's intended configuration for purposes of future comparison and compliance. In other words, Apstra stops treating that specific deviation as an error because it has been acknowledged and absorbed into the ''golden config'' (the intent-aligned configuration Apstra considers correct for that node). This is commonly used when an emergency change was made on-box and you want Apstra's source of truth to reflect it, rather than reverting it.

This differs from Apply Full Config, which is used to push Apstra's intended configuration down to the device to restore compliance. If you do not accept the change, a later commit/apply action can overwrite the CLI-entered configuration to re-align with blueprint intent.

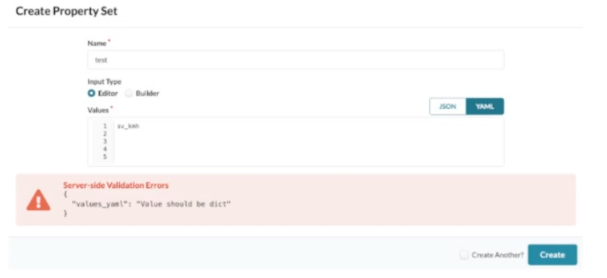

Answer: A, B, E

Explanation:

In Apstra 5.1, property sets are structured data objects (YAML/JSON) used to hold values that templates can consume at render time. Their most common use is with configlets, where property set key/value pairs are referenced as variables inside the template so Apstra can perform variable substitution during configuration generation. This directly supports statement B.

Property sets are also designed to be reusable. A single configlet can reference more than one property set (for example, one set for NTP servers and another for syslog collectors), allowing clean separation of data domains and easier lifecycle updates. This supports statement E.

Operationally, when you bring design content into a blueprint, the blueprint must have the required supporting objects available. In Apstra workflows, configlets that use property sets require those property sets to be present in the blueprint context (commonly accomplished by importing the relevant property set(s) from the catalog into the blueprint as part of bringing in the configlet and its dependencies). This aligns with statement A as the blueprint-level outcome: the property sets used by an imported configlet are imported/available in the blueprint for rendering.

Statements C and D are incorrect because property sets are not limited only to configlets (they are also used with Analytics probes), and the syntax is not vendor-specific---Apstra uses standard YAML/JSON structures independent of NOS.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/property-set-datacenter-design.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/concept/property-set-datacenter-design.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/ref/configlet-examples.html

Answer: A

Explanation:

In Apstra 5.1, servers are modeled as Generic Systems and must be represented in the blueprint topology so that Apstra can bind an endpoint (the server) to a specific switch interface and then apply the intended connectivity template / virtual network attachment. In the exhibit, the interface ge-0/0/5 on my_border_001_leaf1 is shown as missing from the assignment workflow, which indicates that Apstra does not currently have an endpoint object connected to that port in the blueprint's staged physical topology (or that the port is not presented as an eligible connectivity point for server attachment).

The correct remediation is to add a Generic System connected to my_border_001_leaf1 ge-0/0/5 in Staged > Physical > Topology, thereby creating a modeled server link on that interface. Once the Generic System exists and the interface is a recognized server-facing connectivity point, you can assign the Tagged VXLAN ''finance-app'' connectivity template (or the VN assignment action driven by that template) to the server-facing interface and then commit the staged changes.

Changing ''deploy mode'' may affect whether Apstra actively configures a generic system-facing link, but it does not solve a missing interface in the topology model. Likewise, allocating an IP pool is unrelated to making the port available for attachment, and assigning the VN to the switch node is not how server interfaces are attached in this workflow.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/internal-generic-system-create.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/virtual-network-assignment-update.html

https://cloudlabs.apstra.com/labguide/Cloudlabs/6.0.0/test-drive-guide/lab1-junos-11_adding-gs.html

Answer: A, C

Explanation:

In Apstra 5.1, a Virtual Network (VN) is Apstra's abstraction for a Layer 2 forwarding domain that groups endpoints into a logical segment across the fabric. Apstra defines virtual networks as being constructed using either VLANs or VXLANs. A VLAN-based VN represents a Layer 2 domain identified by a VLAN ID and is typically used where you want traditional VLAN semantics (often in smaller environments, migration scenarios, or designs where an overlay is not required). A VXLAN-based VN represents the same Layer 2 intent but uses a VXLAN VNI for scalable overlay segmentation, which is the common approach in EVPN-VXLAN data center fabrics.

In an IP fabric architecture, VXLAN provides encapsulation to carry tenant segments over the routed underlay, while EVPN provides the control-plane signaling for MAC/IP reachability. Junos v24.4 leaf devices act as VTEPs, mapping local VLANs/bridge-domains to VNIs and participating in EVPN for advertisement and convergence. Apstra's VN construct allows you to create the segment once (as VLAN or VXLAN type), then consistently attach it to racks, ports, and endpoints through intent-driven workflows (such as connectivity templates and virtual network assignments).

''L2 VPN'' and ''L3 VPN'' are service provider terms and are not the VN ''types'' in Apstra's data center reference design. In Apstra, tenant L3 separation is modeled by routing zones (VRFs), while the VN itself is specifically either VLAN-based or VXLAN-based.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/virtual-networks.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/virtual-network-create.html
