Important Juniper JN0-106 JNCIA-Junos Exam Questions

Answer: A, B

Explanation:

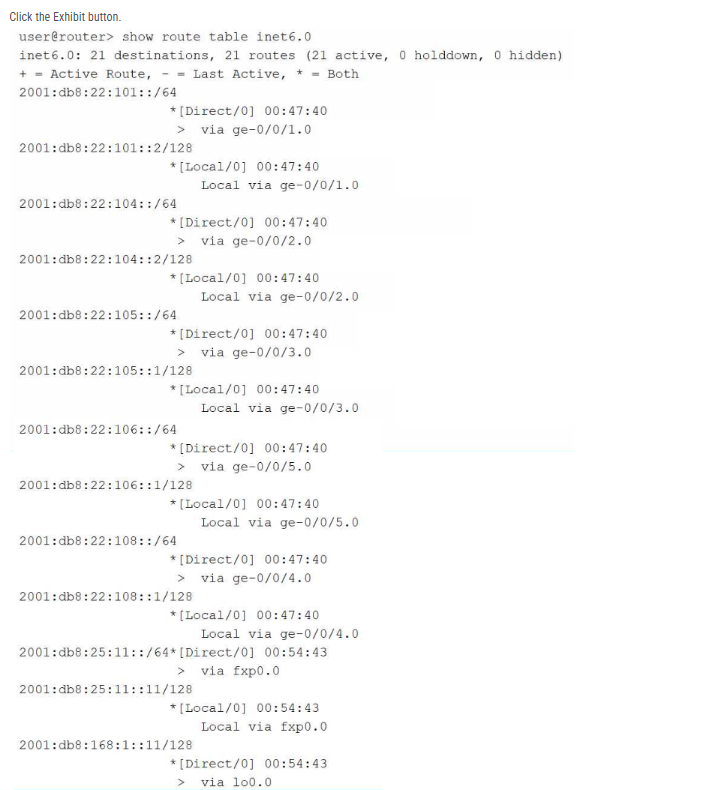

The provided exhibit displays the output of the show route table inet6.0 command, which represents the master routing table for IPv6 unicast traffic in Junos OS. Analysis of the specific route entries reveals that all listed destinations are categorized as either [Direct/0] or [Local/0]. These route types indicate that the table only contains networks physically connected to the router's interfaces and the specific IP addresses assigned to those interfaces.

Because there are no routes identified by dynamic protocols (such as OSPFv3, IS-IS, or BGP) or static entries, it is verified that the router is not learning IPv6 routes from any neighbors or peers. Consequently, the routing table lacks reachability information for any non-local or remote IPv6 segments. Without these routes or a configured default gateway (::/0), the router is unable to forward traffic to remote IPv6 networks. Statements C and D are factually incorrect based on the exhibit: the 2001:db8:22:108::/64 network is associated with interface ge-0/0/4.0 (not ge-0/0/5.0), and the 2001:db8:22:107::/64 network is entirely absent from the displayed routing table.

Answer: A, C

Explanation:

Junos OS incorporates a robust configuration versioning and recovery system designed to protect against configuration errors and human oversight. A key feature of this system is that rollback files are stored automatically by the device after each successful commit. These files represent a historical record of previous active configurations. By default, the system maintains a set number of these files, allowing an administrator to revert to a previous state (e.g., rollback 1) if the most recent changes result in unexpected network instability.

Another critical safety mechanism is the behavior associated with the commit confirmed command. If an administrator issues this command but fails to provide a subsequent confirmation within a designated timeframe (defaulting to 10 minutes), the system assumes a loss of management connectivity. Consequently, the rollback configurations are applied automatically after the commit confirmed timeout to restore the previous known-good state. This is an essential best practice for remote configuration management. It is important to note that rollback 0 refers to the currently active configuration, not the factory default, and that while Junos supports maintaining a large number of rollback files, the primary operational benefit lies in the automated storage and confirmation-based recovery processes that ensure the device remains reachable and stable. Reference: Configuration Basics, Rollback Configurations, Commit Confirmed Logic.

Answer: B

Explanation:

In the Junos OS, the Command Line Interface (CLI) uses distinct prompt symbols to provide the administrator with immediate contextual awareness of their current operating environment. When the prompt ends with a hash symbol (#), it indicates that the user is in configuration mode.

This mode is the 'engine room' of the device, where you modify the candidate configuration. Here, you can add, delete, or modify statements across the various hierarchies like [edit system], [edit interfaces], or [edit protocols]. It is important to remember that changes made while the # prompt is visible are not active until a commit command is successfully executed.

Contrast this with the operational mode, which is indicated by a greater-than symbol (>). Operational mode is used for monitoring, troubleshooting, and viewing the system status (e.g., show commands). Moving between these modes is a fundamental part of the Junos workflow: you enter configuration mode by typing configure and return to operational mode by typing exit or quit. If you see a percent sign (%), you've wandered into the FreeBSD shell mode, which is a lower-level Unix environment typically reserved for advanced system maintenance. Recognizing that # means you have the power to change the system's 'brain' is a key safety check for any network architect.

Answer: B

Explanation:

To effectively troubleshoot packet forwarding in a Junos environment, an architect must distinguish between the control plane's Routing Information Base (RIB) and the data plane's Forwarding Information Base (FIB). While the command show route displays the RIB (the master routing table maintained by the Routing Engine), it does not necessarily reflect the actual instructions being executed by the hardware. The definitive command for viewing the data plane's active path selection is show route forwarding-table.

Executing this command reveals the contents of the FIB as it has been pushed from the Routing Engine to the Packet Forwarding Engine (PFE). The output provides critical diagnostic data, including the destination prefix, the specific next-hop IP address, the interface through which the packet will egress, and the type of route (such as unicast or broadcast). This is the 'ground truth' for packet movement; if a route exists in the RIB but is missing from the forwarding table, it indicates a failure in the communication between the RE and PFE. Utilizing this command is the primary method for identifying black holes, incorrect next-hop resolution, or issues with hardware-level filter applications that might be impacting transit traffic flow at wire speed.

Answer: B

Explanation:

Class of Service (CoS) is a fundamental suite of features in Junos OS designed to manage traffic patterns during periods of network congestion. Rather than treating all packets equally, CoS allows the Packet Forwarding Engine (PFE) to differentiate between various types of traffic---such as latency-sensitive Voice over IP (VoIP), critical routing protocol updates, and standard 'best-effort' internet traffic---and prioritize them accordingly. When egress interface buffers become saturated, the CoS mechanism uses defined schedulers and queues to ensure that high-priority packets are transmitted first, while less critical traffic may be delayed or dropped.

It is important to distinguish CoS from security or addressing functions. CoS does not provide encryption services (which is the role of IPsec or MACsec), nor does it manage IP address allocation or VLAN segmentation. Instead, it focuses entirely on the intelligent allocation of bandwidth and buffer resources. By implementing CoS, network architects can guarantee a specific level of performance for mission-critical applications, effectively minimizing jitter and packet loss for the most important data streams. This deterministic behavior is vital for modern converged networks where multiple traffic types compete for limited hardware resources across the switch fabric or WAN links. Reference: Junos OS Fundamentals, Class of Service (CoS) Overview.
