Important Juniper JN0-650 JNCIP-ENT Exam Questions

Answer: C

Explanation:

In an EVPN-VXLAN environment using ESI-LAG (Ethernet Segment Identifier Link Aggregation), the Core Isolation feature is a safety mechanism designed to prevent traffic blackholing. When a leaf switch (acting as a VTEP) loses its BGP peering or its link to the IP fabric core, it assumes it is 'isolated' from the rest of the network. To protect the network, the switch automatically shuts down its local member links of any multi-homed ESI-LAG to force traffic to the peer switch that still has core connectivity.

However, during a migration or in specific transitional topologies where the core might be temporarily unreachable or not yet fully established, this feature can cause the leaf switches to shut down all downstream IDF (Intermediate Distribution Frame) connections, leading to a total loss of connectivity.

The Solution (Option C): By enabling the no-core-isolation statement under the [edit protocols evpn] hierarchy, you instruct the switch to disable this automatic shutdown behavior. This ensures that even if the BGP session or core links are not yet stable during the migration process, the ESI-LAG interfaces remain Up, allowing the IDFs to maintain connectivity to their local default gateways or other local resources.

Why others are incorrect: Enabling EVPN-VXLAN before migration (Option A) does not address the isolation logic. Removing MC-LAG/Virtual Chassis links prematurely (Option B) would cause an immediate outage. The network-isolation-profile (Option D) is typically used for different loop prevention scenarios and does not override the specific core-isolation check that affects multi-homed ESIs.

Answer: A

Explanation:

In Junos OS Class of Service (CoS) processing, there is a specific order of operation for packet classification.

Precedence of Multifield (MF) Classifiers: When both a Behavior Aggregate (BA) classifier and a Multifield (MF) classifier are applied to an interface, the MF classifier takes precedence.

Processing Order:

The BA classifier (e.g., DSCP or 802.1p) inspects the packet header and assigns an initial forwarding class and loss priority.

The MF classifier (which looks at multiple fields like source/destination IP and port) is processed later in the pipeline.

The 'Final Word': Because the MF classifier is evaluated later, its results overwrite any previous assignments made by the BA classifier. Therefore, if a packet matches both, the MF classifier determines the final forwarding class assignment.

Answer: A

Explanation:

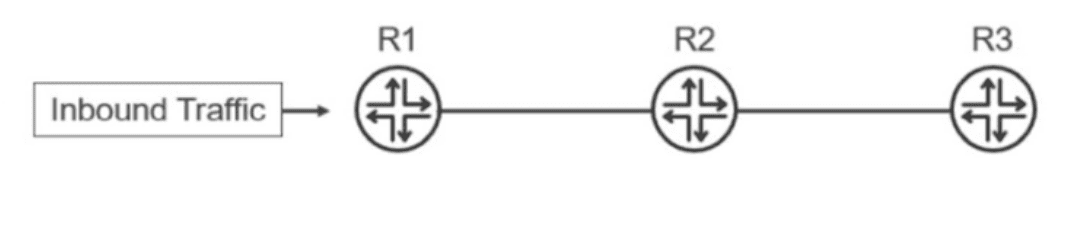

This scenario describes the standard transition of Class of Service (CoS) metadata from the network edge to the network core.

MF vs. BA Classification: Edge devices use Multifield (MF) classifiers because incoming traffic often lacks markings. MF classification assigns traffic to an internal forwarding class based on multiple fields (IPs, ports, etc.). Core devices use Behavior Aggregate (BA) classifiers because they are faster; they only look at the CoS bits (like DSCP) in the header to determine the forwarding class.

The Problem: Internal forwarding class assignments made by an MF classifier on the edge device do not automatically travel with the packet. If the packet leaves the edge device with its original (potentially zeroed) DSCP bits, the core device's BA classifier will not be able to identify the priority.

The Solution (Option A): You must implement rewrite rules on the egress interfaces of the edge devices. A rewrite rule takes the internal forwarding class and loss priority assigned by the MF classifier and 'writes' the corresponding DSCP value into the packet header as it exits toward the core. This ensures that the core device sees the correct DSCP marking and can apply the appropriate BA classification.

Incorrect Options: Rewrite rules are strictly an egress function to modify the packet for the next hop. Applying them on ingress (Option B) or core ingress (Option C) does not solve the problem of ensuring the packet header reflects the classification logic used during the internal switching process of the edge device.

Answer: A, B

Explanation:

The exhibit shows the Class of Service (CoS) transmit queue information for interface ge-0/0/11. To determine the correct behavior, we must analyze the bandwidth allocations and the queue limit settings:

Bandwidth Calculation (Option A): In Junos OS, when multiple queues are assigned specific percentages of bandwidth, the 'remainder' (represented by 'r') is the total interface bandwidth minus the sum of the explicitly configured percentages.

Bandwidth assigned to Queue 1 (EF) = 10%.

Bandwidth assigned to Queue 2 (AF) = 10%.

Bandwidth assigned to Queue 3 (NC) = 4%.

Total explicitly assigned = $10\% + 10\% + 4\% = 24\%$.

Remainder for Queue 0 (Best Effort) = $100\% - 24\% = 76\%$.

'Limit: exact' Behavior (Option B): The exhibit shows that Queue 2 (assured-forwarding) has a Limit set to exact.

By default, a queue in Junos can consume more than its allocated bandwidth if other queues are idle.

However, when the exact keyword is applied to the transmit-rate (transmission rate), the queue is strictly rate-limited to its configured percentage.

This means that traffic in Queue 2 will be capped at 10% of the interface bandwidth regardless of whether the network is congested or not. If the traffic exceeds 10%, the excess will be dropped or buffered to match the exact rate.

Option C is incorrect because 100% of the bandwidth is not reserved for a single queue; it is distributed across four queues.

Option D is less accurate than B because it implies the drop behavior only occurs during congestion. The exact parameter enforces the limit even when the rest of the interface is completely idle.

Answer: A

Explanation:

In this scenario, the requirement is to authenticate devices based on their MAC addresses using a centralized database.

MAC RADIUS (Option A): This is the standard Juniper method for authenticating 'headless' or non-802.1X capable devices based on their hardware (MAC) address. The switch acts as a proxy, sending the device's MAC address as the username and password to a centralized RADIUS server (the centralized database). If the MAC address is found in the server's database, the device is granted access to the network. This perfectly matches the user's requirement for MAC-based authentication and a centralized database.

Captive Portal (Option B): This is a web-based authentication method requiring user interaction (login via a browser), which is not based on MAC address identification for the initial authentication phase.

Supplicant Modes (Options C & D): These define how multiple devices are handled on an 802.1X-enabled port, but they are not authentication methods themselves; they rely on 802.1X (EAP-based) or MAC-RADIUS being already configured.
