Important Fortinet NSE7_FSN_AR-7.6 Exam Questions

Answer: A

Explanation:

To display debug output on FortiGate devices, you must always run both the application-specific debug command and the global debug enable command. The commanddiagnose debug application ike -1sets up the detail level for the IKE daemon debug, but it doesnot display any debug output on its own. As described in the FortiOS CLI debugging manuals, the commanddiagnose debug enableactivates debug output on the console, making all previously set debugs visible. This is especially important for VPN troubleshooting---without the enable command, no output appears even if there is VPN traffic.

The correct diagnostic sequence is:

diagnose debug application ike -1

diagnose debug enable

This procedure is found in every FortiOS CLI debug tutorial and troubleshooting workflow.

FortiOS CLI Reference: Debugging VPNs and Real-time Debug Output

FortiGate VPN Troubleshooting Guide: Required Steps for Debug Output

Answer: B, C

Explanation:

According to the official Fortinet documentation (Technical Tip: Useful FSSO Commands), heartbeat messages play a crucial role in communication between the FSSO Collector Agent and FortiGate. These messages are regularly sent from the Collector Agent to verify its status, maintain session awareness, and confirm connectivity between the authentication infrastructure and FortiGate appliances.

Option B is confirmed by Fortinet, as the collector agent logs on Windows or its management console will specifically note heartbeat events, connection status, and any issues maintaining contact with FortiGate units.

Option C is validated by both official CLI documentation and the technical tip linked. On FortiGate, heartbeat messages from the collector agent are visible using real-time debug tools such asdiagnose debug application authdor FSSO-specific commands. These enable administrators to monitor live logon states, session status, and connection health directly from the FortiGate CLI. The debug stream shows heartbeats received and their effect on active logons, associating health monitoring with active sessions.

Heartbeat operation is fully automated once FSSO is set up---there is no requirement for manual enablement or configuration, aligning with Fortinet's philosophy of seamless integration and centralized management across the Security Fabric. This ensures that both FortiGate and the collector agent can quickly and reliably detect any miscommunication or outage, addressing authentication issues proactively.

Technical Tip: Useful FSSO Commands (Fortinet Community)

FortiOS Administration Guide: FSSO, Collector Agent, Heartbeat, CLI Debug

Answer: A, B

Explanation:

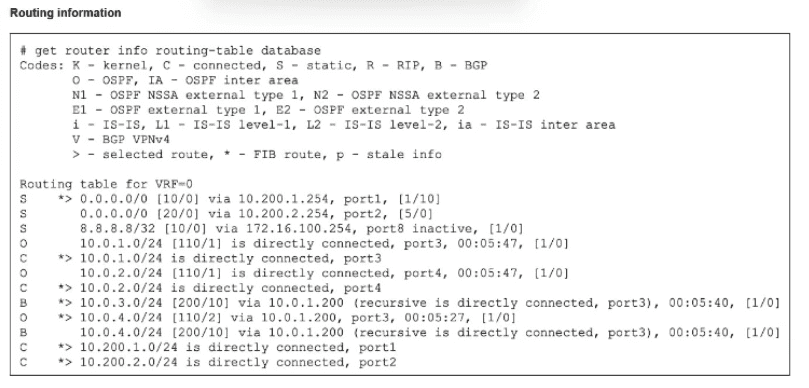

We must analyze the flags (*, >, S, O, B) and Administrative Distances (AD) shown in the get router info routing-table database exhibit to determine the correct statements.

Analysis for Option A (The BGP route to 10.0.4.0/24 is not in the forwarding information base):

True. Look at the entry for 10.0.4.0/24.

There is an OSPF route: O *> 10.0.4.0/24 [110/2]. The * indicates it is in the FIB, and > indicates it is the selected route.

There is a BGP route: B 10.0.4.0/24 [200/10]. This line lacks the * flag.

Reason: The OSPF route has an Administrative Distance of 110. The BGP route (iBGP) has an AD of 200. Since 110 is lower than 200, OSPF wins, and the BGP route is not installed in the Forwarding Information Base (FIB).

Analysis for Option B (The default static route through 10.200.1.254 is in the forwarding information base):

True. Look at the 0.0.0.0/0 entries.

The first entry is S *> 0.0.0.0/0 [10/0] via 10.200.1.254.

The * flag confirms this specific route is installed in the FIB.

The second static route (via 10.200.2.254) has a higher distance ([20/0]) and no * flag, so it is inactive.

Why C is False: ECMP (Equal Cost Multi-Path) requires routes to have the same cost/priority. Here, one static route has AD 10 and the other has AD 20. They are not equal, so ECMP is not performed.

Why D is False: The routing table database shows active routes, not the raw Link State Advertisement (LSA) database. You cannot determine the number of LSAs received solely from this output.

FortiGate Security 7.6 Study Guide (Routing): 'The routing table database displays all known routes... The * indicates the route is in the FIB... Lower Administrative Distance is preferred.'

Answer: A, D

Explanation:

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-troubleshoot-FSSO-agentless-polling/ta-p/214349

From the snippet we can see that FortiGate (via the fssod daemon) is directly detecting the user logon rather than relying on a separate ''collector'' or ''DC agent.'' This indicates agentless polling---FortiGate polls the DC's event logs over TCP 445 to discover logons. So: - FSSO is using agentless polling mode to detect logon events - In agentless mode, FortiGate will periodically poll the same IP (the DC) on port 445 to see if the user is still logged on

Answer: A, B

Explanation:

The correct answers are A and B.

For UDP, the study guide states this directly: ''For UDP, the session state can have only two values: 00 when traffic is only one way, and 01 when traffic is two ways. For ICMP, the protocol state is always 00.''

That makes B correct and D incorrect.

For TCP, the study guide explains that the protocol state is a two-digit number, where the first digit is the server-side state and the second digit is the client-side state. It also states that the first digit is 0 when the session is not subject to any inspection, and the TCP state table shows that value 1 = ESTABLISHED

So, for a normal non-proxied/non-inspected TCP session, proto_state=01 means the TCP session is in the ESTABLISHED state. An established TCP session means the three-way handshake has completed, which requires traffic in both directions. That is why A is correct.

The study guide also says: ''proto_state=11 means that the TCP three-way handshake for both server-side and client-side is completed (ESTABLISHED).''

This confirms that TCP state value 1 represents an established state.

Why C is not selected: the study guide defines value 5 as TIME_WAIT and says: ''When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds... This is the state value 5.''

So proto_state=05 represents a closing/closed TCP session in TIME_WAIT, not the normal bidirectional state the question is testing.

Therefore, the verified answers are A and B.
