Important Fortinet NSE5_FSW_AD-7.6 Exam Questions

Answer: D

Explanation:

Layer 3 routing can be configured on FortiSwitch, while managed by FortiGate (D): FortiSwitch, when managed by FortiGate, supports Layer 3 routing capabilities. This allows for routing between VLANs directly on the switch, enhancing network efficiency by reducing the need to pass traffic through higher network layers for inter-VLAN communication. This configuration enables more sophisticated network setups and efficient routing directly at the switch level.

Answer: C

Explanation:

In a FortiGate-managed switching deployment usingFortiLink, FortiSwitch devices rely on theirinternal interfaceto establish management connectivity with the FortiGate. According to the FortiSwitchOS 7.6 Administrator Guide, when a FortiSwitch operates in FortiLink mode, theinternal interface must obtain an IP address dynamically via DHCPfrom the FortiGate over the FortiLink interface. This IP address is required for control-plane communication, including CAPWAP-based management messaging.

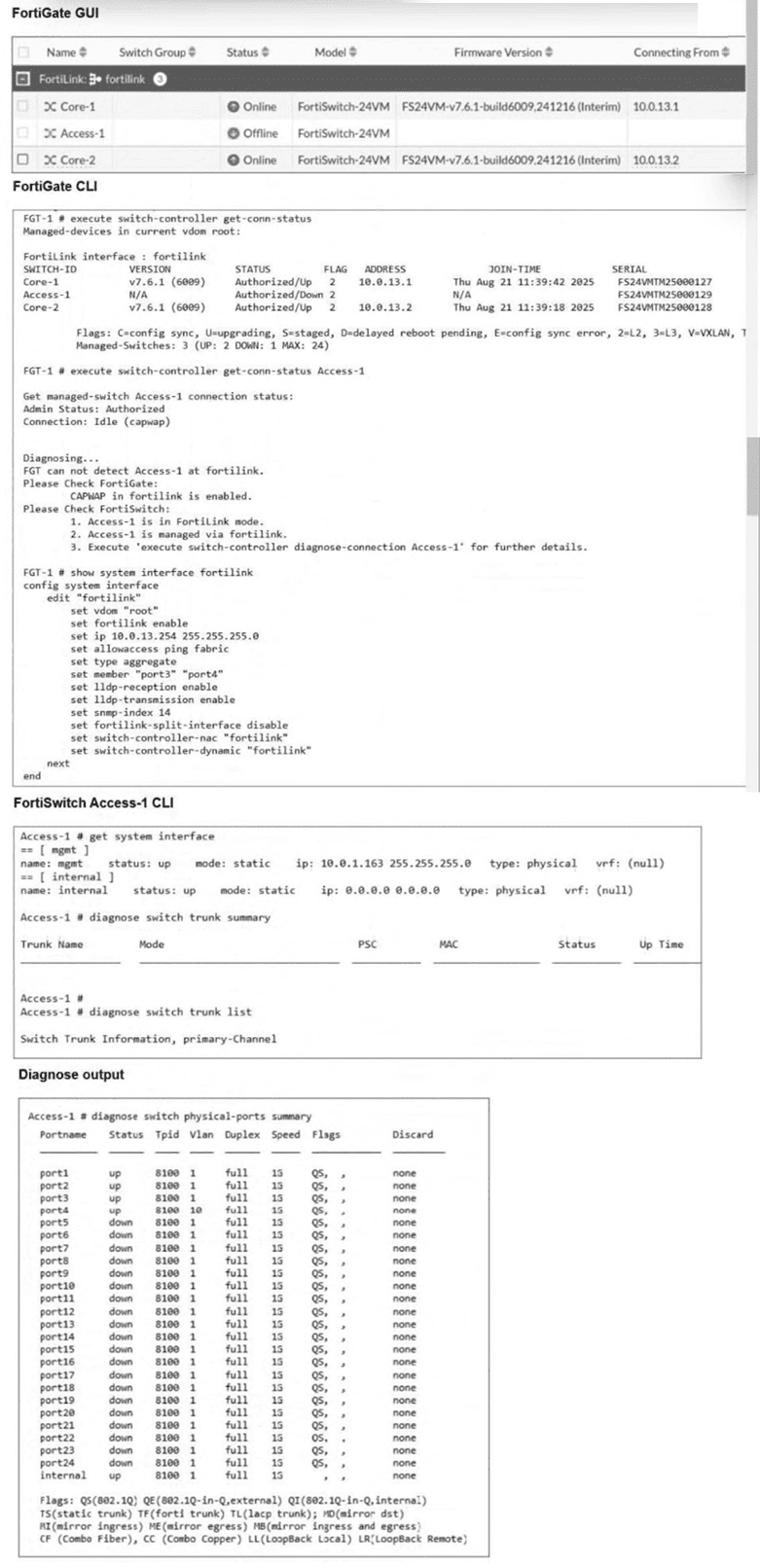

From the exhibit, FortiGate successfully managesCore-1andCore-2, whileAccess-1remains offline. The FortiGate diagnostic output explicitly reports that itcannot detect Access-1 at the FortiLink interface, even though CAPWAP is enabled and the switch is in FortiLink mode. This eliminates CAPWAP configuration (Option B) as the root cause.

Examining the FortiSwitch Access-1 CLI output reveals the key issue:

Theinternal interfaceis configured withmode: staticand an IP address of0.0.0.0.

This configuration prevents Access-1 from obtaining a valid FortiLink management IP address, which is mandatory for FortiGate discovery and authorization. In contrast, FortiSwitch devices managed by FortiGate must have their internal interface set toDHCP, allowing the FortiGate to automatically assign an address from the FortiLink subnet.

Assigning a static IP (Option A) is not recommended or required in FortiLink-managed mode, NTP configuration (Option D) has no impact on discovery, and CAPWAP is already enabled as shown in the FortiGate output.

Therefore, theinitial and required corrective actionis toset the Access-1 internal interface mode to DHCP, makingOption Cthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 documentation.

Answer: B

Explanation:

According to theFortiSwitchOS 7.6 Administration Guide(specificallyPage 178) and theFortiSwitch 7.6 Study Guide, the Spanning Tree Protocol (STP) is the fundamental protocol used to manage redundant paths in a Layer 2 network. In the scenario described, where every FortiSwitch connects to every other FortiSwitch, afull Layer 2 meshis created. This architecture inherently produces multiple physical switching loops that, if left unmanaged, would cause catastrophic broadcast storms.

STP is responsible for detecting these loops by exchangingBridge Protocol Data Units (BPDUs). It then mathematically calculates a loop-free logical topology by placing redundant ports into ablocking (discarding)state while keeping primary paths in aforwardingstate. WhileMCLAG (Option A)provides node-level redundancy and eliminates STP delays by allowing two switches to appear as one, it is not a standalone solution for a global full-mesh topology. In fact, Fortinet MCLAG explicitly relies on STP through the mclag-stp-aware feature to detect and prevent loops caused by connections outside the Inter-Chassis Link (ICL).

Therefore, although MCLAG and LAG increase bandwidth and availability,STPremains the required underlying mechanism to maintain network stability in any highly redundant mesh environment. 'Full mesh HA' (Option C) is not a defined feature in FortiSwitchOS 7.6.

Answer: C

Explanation:

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer 2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.

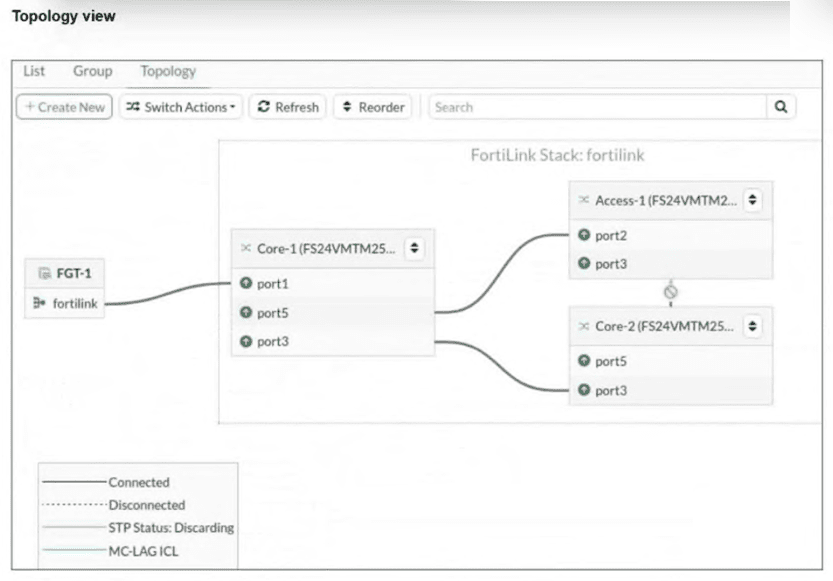

The behavior described in the exhibit---whereport3 on Access-1enters aDiscarding state---is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the 'best' path to that root (the Root Port) and block all other redundant paths.

The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2's priority settings influenced the STP tree such that Access-1's link to it was determined to be the redundant (alternate) path.

If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP 'Discarding' state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.

Answer: B

Explanation:

In a hierarchical network model, the role of a device functioning simultaneously as both the distribution and core is most accurately described as 'FortiGate managing FortiSwitch (B).' In this setup, FortiGate acts as the central unit managing multiple FortiSwitch units, thereby functioning both as a distribution layer---handling traffic between network segments---and as a core layer---managing traffic within the network on a broader scale. This setup is typical in medium-sized networks where a single device is capable enough to handle both roles effectively.
