Important Fortinet NSE5_SSE_AD-7.6 Exam Questions

Answer: B

Explanation:

According to the SD-WAN 7.6 Core Administrator curriculum and the FortiOS 7.6 Administration Guide, setting common web-based services like Facebook and LinkedIn as destinations in an SD-WAN rule is primarily accomplished through the Internet Service Database (ISDB).

Internet Service vs. Application Control: In FortiOS, there is a distinction between Internet Services (which use a database of known IP addresses and ports to identify traffic at the first packet) and Applications (which require the IPS engine to inspect deeper into the packet flow to identify Layer 7 signatures).

SD-WAN Efficiency: Fortinet recommends using the Internet service field for services like Facebook and LinkedIn in SD-WAN rules because it allows the FortiGate to steer the traffic immediately upon the first packet. If the 'Application' signatures were used instead, the first session might be misrouted because the application is not identified until after the initial handshake.

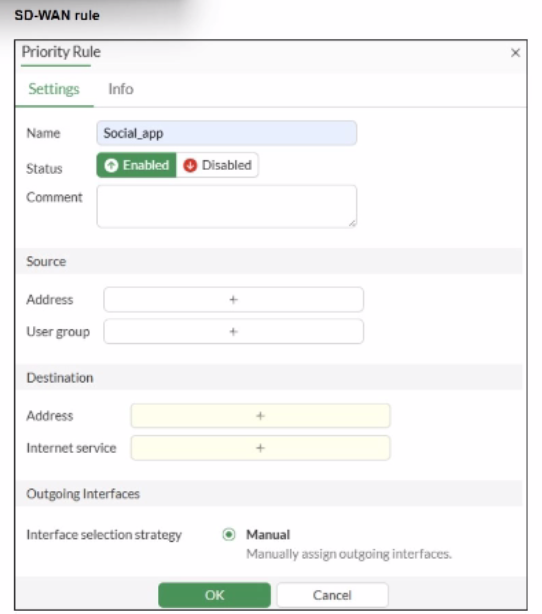

GUI Configuration: As shown in the exhibit (image_b3a4c2.png), the 'Destination' section of an SD-WAN rule includes an Internet service field by default. To steer Facebook and LinkedIn traffic, the administrator simply clicks the '+' icon in that field and selects the entries for Facebook and LinkedIn from the database.

Feature Visibility (Alternative): While you can enable a specific 'Application' field in System > Feature Visibility (by enabling 'Application Detection Based SD-WAN'), this is typically used for less common applications that do not have dedicated ISDB entries. For the specific 'applications' mentioned (Facebook and LinkedIn), they are natively available in the Internet service field, making Option B the most direct and common implementation.

Why other options are incorrect:

Option A: Licensing for application signatures is part of the standard FortiGuard services and is not a prerequisite specific only to 'applications as destinations' in SD-WAN rules.

Option C: Standalone FortiGate devices fully support application-based and ISDB-based steering in SD-WAN rules.

Option D: While enabling feature visibility would add an additional field for L7 applications, it is not a 'must' for Facebook and LinkedIn, which are already accessible via the Internet Service field provided in the default GUI layout.

Answer: A, B

Explanation:

In the SD-WAN 7.6 Core Administrator curriculum, steering 'local-out' traffic (traffic generated by the FortiGate itself, such as DNS queries, FortiGuard updates, or diagnostic pings) requires specific configuration because this traffic follows a different path than 'forward' traffic.

Individual Configuration (Option A): By default, local-out traffic bypasses the SD-WAN engine and uses the standard system routing table (RIB/FIB). To use SD-WAN rules for specific features like DNS or RADIUS, you must individually enable the sdwan interface-select-method within that feature's configuration (e.g., config system dns or config user radius).

Default Steerable Traffic (Option B): In FortiOS 7.6, while most local-out traffic is excluded from SD-WAN by default, the system is designed so that when SD-WAN is active, it primarily considers SD-WAN rules for specific diagnostic local-out traffic---specifically ping and traceroute---to allow administrators to verify path quality using the same logic as user traffic.

Why other options are incorrect:

Option C: Local-out traffic can be steered using any SD-WAN strategy (Manual, Best Quality, etc.), provided the interface-selection-method is set to sdwan.

Answer: A, D

Explanation:

According to the SD-WAN 7.6 Core Administrator study guide and the FortiOS 7.6 Administration Guide, configuring load balancing within SD-WAN rules requires an understanding of how the engine selects and distributes sessions across multiple links.

SLA Target Logic (Option A): In FortiOS 7.6, the Lowest Cost (SLA) strategy has been enhanced. When the load-balance option is enabled for this strategy, the FortiGate does not just pick a single 'best' link; it identifies all member interfaces that currently meet the configured SLA target (e.g., latency < 100ms). It then load balances the traffic across all those healthy links to maximize resource utilization.

Hash Modes (Option D): When an SD-WAN rule is configured for load balancing (valid for Manual and Lowest Cost (SLA) strategies in 7.6), the administrator must define a hash mode to determine how sessions are distributed. While 'outsessions' in the question is a common exam-variant typo for outbandwidth (or sessions-based hashing), the core principle remains: you can select the specific load-balancing algorithm (e.g., source-ip, round-robin, or bandwidth-based) for all strategies where load-balancing is enabled.

Why other options are incorrect:

Option B and C: These options are too restrictive. In FortiOS 7.6, load balancing is not limited to only 'manual and best quality' or 'manual and lowest cost' in a singular way. The documentation highlights that Manual and Lowest Cost (SLA) are the primary strategies that support the explicit load-balance toggle to steer traffic through multiple healthy members simultaneously.

Answer: B, E

Explanation:

According to the SD-WAN 7.6 Core Administrator study guide and FortiOS 7.6 Administration Guide, the 'implicit rule' is the default rule at the bottom of the SD-WAN rule list (ID 0). It is only evaluated if traffic does not match any manually configured SD-WAN rules.

Policy Route Table Context (Option B): SD-WAN rules are technically a specialized form of policy-based routing. For a packet to match the implicit rule, it must first pass through the routing hierarchy. If traffic matches the implicit rule, it indicates that it did not match any higher-priority user-defined SD-WAN rules or any specific entries in the manual policy route table that would have intercepted the traffic earlier.

Session Information (Option E): When you use the CLI to inspect an active session (e.g., diagnose sys session list), the output contains a field for the SD-WAN Service ID. If traffic is steered by a user-defined rule, it displays the ID of that rule (e.g., service_id=1). However, when traffic falls through to the implicit rule, the session information displays no SD-WAN service ID (it often shows as 0 or is omitted), because the implicit rule does not function as a 'service' in the same way user-defined rules do.

Routing Behavior: The implicit rule follows the standard routing table (RIB/FIB) logic. It uses the priority and distance of the static routes to determine the path. If multiple paths have the same distance and priority, it uses the algorithm set by v4-ecmp-mode, but this is a function of the routing engine, not the SD-WAN engine itself.

Why other options are incorrect:

Option A: While v4-ecmp-mode (e.g., source-ip-based) is used for ECMP routing, this is part of the general FortiOS routing behavior for equal-cost paths in the FIB, whereas the implicit rule simply 'hands over' the decision to that routing table.

Option C: When traffic matches the implicit rule, the session is actually flagged with vwl_id=0 and potentially dirty if a route change occurs, but vwl_default is not the standard flag name used in this specific context in the curriculum.

Option D: This is incorrect because the implicit rule does respect weight, distance, and priority as defined in the static routes within the routing table; it does not distribute traffic 'regardless' of these values.

Answer: C

Explanation:

According to the FortiSASE 24.4 Administration Guide and the FortiSASE Core Administrator training materials, the On-net detection rule setting is a critical component for determining the 'trust status' of an endpoint's physical location.

Endpoint Location Verification: On-net rule sets are used to determine if FortiSASE considers an endpoint to be on-net (trusted) or off-net (untrusted). An endpoint is considered on-net when it is physically located within the corporate network, which is assumed to already have on-premises security measures (like a FortiGate NGFW).

Operational Impact: When an endpoint is detected as on-net, FortiSASE can be configured to exempt the endpoint from automatically establishing a VPN tunnel to the SASE cloud. This optimization prevents redundant security inspection and conserves SASE bandwidth since the user is already protected by the local corporate firewall.

Detection Methods: To classify an endpoint as on-net, administrators configure rule sets that look for specific environmental markers, such as:

Known Public (WAN) IP: If the endpoint's public IP matches the corporate headquarters' egress IP.

DHCP Server: If the endpoint receives an IP from a specific corporate DHCP server.

DNS Server/Subnet: Matching internal DNS infrastructure or specific internal IP ranges.

Dynamic Policy Application: By accurately determining if an endpoint is on or off-net, FortiSASE ensures that the FortiClient agent only initiates its secure internet access (SIA) tunnel when the user is in an untrusted location (e.g., a home network or public Wi-Fi).

Why other options are incorrect:

Option A: User authentication is a separate process and is not controlled by the on/off-net detection rules, which focus on the network environment rather than user credentials.

Option B: While on-net status affects how traffic is routed (VPN vs. local), these rules specifically determine the status itself rather than defining the routing tables for private vs. cloud resources.

Option D: Geographical location (Geo-location) is a different filtering criterion often used in firewall policies; on-net detection is specifically about the proximity to the trusted corporate perimeter.
