Important Fortinet NSE6_FSW-7.2 Exam Questions

Answer: D

Explanation:

In FortiSwitch, Access Control Lists (ACLs) are used to enforce security rules on both ingress and egress traffic:

ACL Evaluation Order (D):

Operational Function: FortiSwitch processes ACL entries from top to bottom, similar to how firewall rules are processed. The first match in the ACL determines the action taken on the packet, whether to allow or deny it, making the order of rules critical.

Configuration Advice: Careful planning of the order of ACL rules is necessary to ensure that more specific rules precede more general ones to avoid unintentional access or blocks.

Reference: For a comprehensive guide on configuring ACLs in FortiSwitch, consult the FortiSwitch security settings documentation available on: Fortinet Product Documentation

Answer: A, B

Explanation:

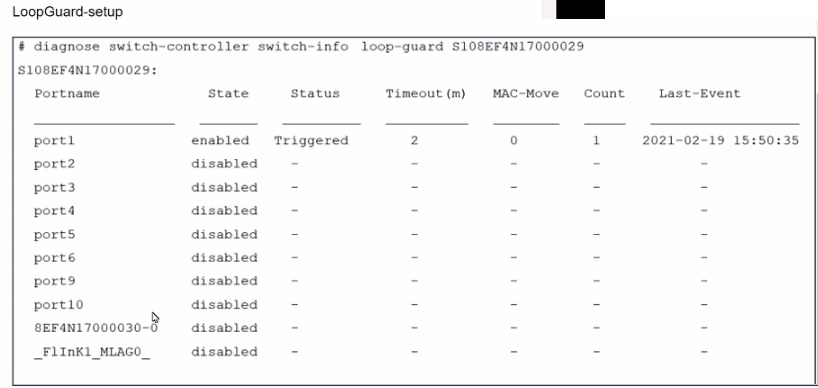

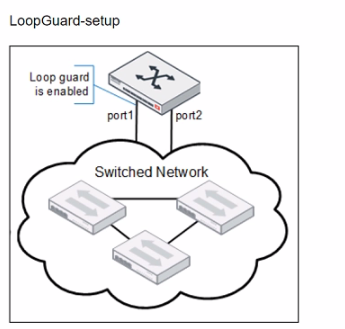

When loop guard is enabled on port1 and port2 configured with the same native VLAN (VLAN 10), there are specific scenarios under which port1 can be shut down due to loop guard operation:

A . port1 was shut down by loop guard protection. Loop guard is a specific feature used in network environments to prevent alternative or redundant loops. When loop guard is active, it can shut down a port if it stops receiving BPDU (Bridge Protocol Data Units) on a port that is expected to receive them, assuming a loop or link failure and putting the port into an inconsistent state to prevent potential loops.

B . STP triggered a loop and applied loop guard protection on port1. If the Spanning Tree Protocol (STP) detects a loop or loss of BPDU transmissions while loop guard is enabled, it will proactively shut down the port to prevent network instability or a broadcast storm. This is an essential function of loop guard within the context of STP, providing additional protection against topology changes that could introduce loops.

Additional details about loop guard functionality and STP interaction can be found in the FortiSwitch administration guides, accessible via Fortinet Documentation.

Answer: A

Explanation:

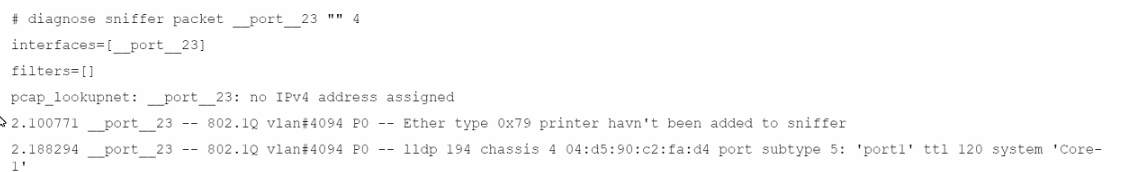

Page 452 of 7.2 study guide, specifically states 'Although you can use the sniffer command to capture traffic on switch ports, the types of packets capture by the sniffer are very limited.

The use of the sniffer command on FortiSwitch CLI can be unreliable on port 23 for specific reasons related to the nature of traffic on the port:

For guidelines on how to properly use sniffer commands on trunk ports and configure VLAN filtering, consult the FortiSwitch CLI reference available through Fortinet support channels, including the Fortinet Knowledge Base.

Answer: A, B

Answer: C, D

Explanation:

The FortiLink authorization process is an integral part of setting up FortiSwitch to be managed by FortiGate. The correct statements regarding the FortiLink authorization process are:

C . A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization. This is a part of the FortiLink protocol, where FortiGate communicates with the connected FortiSwitch to establish management and control. This frame initiates the configuration and management process, allowing FortiGate to effectively control the switch.

D . FortiLink authorization sets the FortiSwitch management mode to FortiLink. Once authorized, the management mode of FortiSwitch is set to FortiLink, indicating that it is being managed via a FortiLink connection from a FortiGate appliance. This changes the operational mode of the switch to be under the control of the FortiGate for centralized management and policy application.

Further details on the FortiLink setup and authorization process can be accessed through the FortiGate configuration guides available on the Fortinet Documentation site.
