Important Cisco 300-830 CLCCE Exam Questions

Answer: C

Explanation:

The requirement is to detect customer dissatisfaction before it escalates. Cisco's AI Assistant reporting and quality features include automatic CSAT scoring, which estimates customer satisfaction from interaction signals and gives the contact center a proactive way to identify poor experiences without waiting for a manual survey response. Topic analytics identifies common contact drivers and trending issues, which is valuable for operational improvement but does not directly score whether a specific customer is dissatisfied. AI-generated summaries reduce after-call work and improve handoff context, but they do not by themselves predict dissatisfaction. Real-time transcripts provide the text foundation for analysis and assistance, but the feature that turns interaction data into a customer-satisfaction signal is automatic CSAT scoring. For a customer-experience program focused on early dissatisfaction detection and proactive resolution, automatic CSAT provides the required risk signal. Reference: Cisco Help, AI Assistant reports in Analyzer; Cisco AI Assistant for Webex Contact Center documentation.

Answer: A

Explanation:

The registration refresh interval is derived from the expires value multiplied by the refresh ratio. In Cisco IOS XE Local Gateway configuration for Webex Calling, the registrar command commonly uses an expires value and a refresh-ratio. With expires 240 and refresh-ratio 50, the gateway refreshes registration at 50 percent of 240 seconds, which is 120 seconds, or exactly two minutes. Option B uses refresh-time, which is not the documented parameter used in the provided command style. Option C would refresh at 60 seconds because 50 percent of 120 is 60. Option D would refresh at 150 seconds because 50 percent of 300 is 150. The correct answer is therefore the command that sets expires to 240 with refresh-ratio 50 over TLS using the sips scheme. This aligns with Cisco's registration-based Local Gateway model, where the SBC must keep SIP registration active toward Webex Calling. Reference: Cisco Help, Configure Local Gateway on Cisco IOS XE for Webex Calling; Configure trunks, route groups, and dial plans for Webex Calling.

Answer: B, D

Explanation:

For OAuth 2.0 custom connector authentication in Webex Contact Center, Cisco documents client credentials using either a client secret or a private key/certificate method. The custom connector configuration supports Client credentials - client secret, where the administrator enters a client ID and client secret, and Client credentials - private key, where the private key corresponds to the certificate material used by the application. Those two choices are valid grant/authentication methods for service-to-service integration because a backend connector needs machine-to-machine authorization rather than a user authorization code flow. Client credentials - token is not a grant type; the token is the output of a successful OAuth exchange. Client credentials - certificate is too imprecise in the option set because Cisco's configuration wording identifies private key/certificate material. Server credentials - certificate is not a documented OAuth grant type for the Webex Contact Center custom connector. Reference: Cisco Help, Configure custom connector for Webex Contact Center; Webex Developer, Integrations and Authorization.

Answer: C, E

Explanation:

The Webex App inside Agent Desktop is controlled through the desktop layout JSON, not merely by installing the Webex App separately. Cisco documentation for supervisor and desktop features points administrators to the webexConfigured setting in the Webex Contact Center desktop layout. The layout also uses the AgentX Webex component identifier to render the embedded Webex application area. That is why the two required parameter combinations are the desktopChatApp object with webexConfigured set to true and the component value agentx-webex. The value webex-app is not the documented component name for this layout object. A generic webexAppEnabled Boolean or webexApp enabled object may look plausible, but it is not the required JSON pattern in the Cisco desktop layout schema. The result is practical: if either the correct component or the webexConfigured flag is absent, the embedded Webex App will not display in Agent Desktop for agent-to-agent, supervisor, or SME collaboration. Reference: Cisco Help, Create custom desktop layout; Supervise your agents and teams.

Answer: A

Explanation:

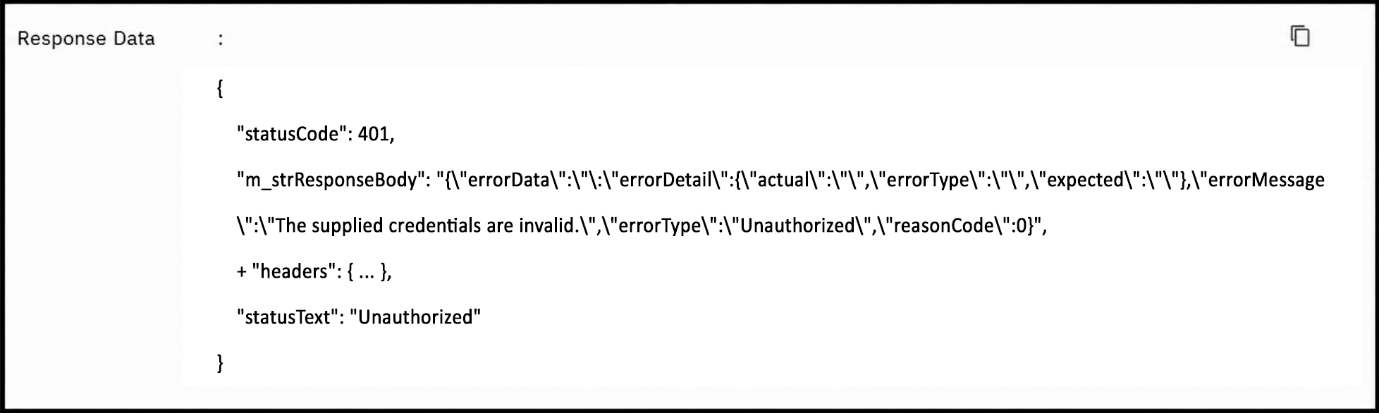

The Resolve Conversation node is a Webex CC Task/Engage integration node that depends on valid node authorization in Webex Connect. Cisco's Webex Connect documentation states that client applications such as Webex Connect must provide a valid access token to use Cisco Webex Contact Center and Webex Engage APIs, and that the token is generated from the configured node runtime authorization. If the Resolve Conversation node fails because it cannot call the Webex Contact Center integration properly, the administrator must authorize the Webex CC Task integration in Webex Connect with valid credentials. Changing the administrator password does not directly authorize the node runtime. Agent credentials are irrelevant because the flow node is running as an integration, not as an agent desktop session. A connector under Webex Contact Center integrations may be needed for some external API use cases, but the failing node shown is part of the pre-built Webex Connect/WxCC task authorization path. Reference: Webex Connect Help, Webex CC Task Integration Nodes and Node Authorizations; Resolve Conversation - WXCC.
