Important Cisco 300-420 ENSLD Exam Questions

Answer: D

Explanation:

The VRF receive feature is the mechanism that fits the constraint when the customer does not want BGP, VRF-Lite links, or static routing for the inter-VRF requirement. Inter-VRF connectivity is normally achieved through route leaking with MP-BGP, static routes, firewall interfaces in each VRF, or VRF-Lite handoff links. The question explicitly excludes those common approaches and asks for a mechanism on the core network layer. The VRF receive capability allows selected traffic received on a global routing interface to be associated with a VRF context for locally configured addresses, supporting limited interaction without building a full routing exchange between the global table and the VRF. Policy-based routing with a global set statement can solve some forwarding cases, but it is not the specific mechanism described by the option set. A route map with import features would typically depend on route leaking behavior. Therefore, the best answer is the VRF receive feature under the global routing interfaces. Reference topics: VRF, inter-VRF routing, VRF receive, route leaking alternatives, core-layer segmentation.

Answer: A

Explanation:

Bidirectional PIM is the correct multicast protocol for this many-to-many financial application. The question states that most multicast sources also receive multicast traffic and that the design must not use source trees. Cisco describes BIDIR-PIM as a multicast mode built for many-to-many applications that use a shared tree rooted at the rendezvous point and avoid per-source shortest-path trees. This reduces multicast state because routers do not maintain separate source/group state for every active sender. PIM Sparse Mode can start with a shared tree, but it can switch to source trees, which violates the stated requirement. PIM-SSM is explicitly source-specific and requires receiver knowledge of the source, so it is not appropriate for a many-to-many model where source trees are disallowed. MSDP is not a multicast forwarding mode; it is used for source discovery between PIM-SM domains. The option text contains a spelling error, but the intended answer is BIDIR-PIM. The architect should verify RP placement, Designated Forwarder behavior, group ranges, and whether the application can tolerate shared-tree forwarding rather than shortest-path source trees. Reference topics: BIDIR-PIM, many-to-many multicast, shared tree, source-tree avoidance, multicast scaling.

Answer: A, C

Explanation:

Rapid PVST+ and VTP address the stated redesign goals. Moving from IEEE 802.1D STP to Rapid PVST+ reduces the impact of topology changes because rapid spanning tree provides faster convergence through proposal/agreement behavior and faster port-role transitions. That improves availability compared with classic STP timers. VTP reduces administrative effort and manual configuration errors by centrally propagating VLAN information across switches in the same VTP domain. It can also support pruning so unused VLAN traffic is not unnecessarily carried across trunks. MST could reduce spanning-tree instance count, but the question emphasizes reducing topology-change impact and reducing manual VLAN configuration work; Rapid PVST+ plus VTP addresses both directly. Storm control helps limit broadcast and multicast traffic but does not solve STP convergence or VLAN administration. Dynamic Trunking Protocol negotiates trunk state; it does not propagate VLAN information and is often avoided in deterministic campus designs. In production, VTP should be used carefully with version control, domain/password discipline, and change governance because incorrect VTP configuration can have broad impact. Reference topics: Rapid PVST+, STP convergence, VTP, VLAN pruning, campus Layer 2 operations.

Answer: A, E

Explanation:

Large EIGRP networks require careful hierarchy and query-boundary design. A structured hierarchical topology with route summarization is one of the most important scaling techniques because summarization reduces routing table size, hides topology changes, and limits the EIGRP query scope when failures occur. This improves convergence and reduces CPU and bandwidth consumption on routers that do not need detailed route visibility. Implementing multiple EIGRP autonomous systems can also be used as a scaling technique in very large designs because it creates administrative and query boundaries, although it introduces redistribution and policy complexity that must be controlled. Sub-second timers are not a primary scaling method; aggressive timers can increase control-plane load and do not reduce the size of the routing domain. Distribute lists can filter routes, but broad filtering alone is not the core scaling architecture for a network with more than 1000 routers. Modifying delay values influences metric calculation and path selection, not EIGRP domain scale. Therefore, the valid scaling techniques are structured hierarchy with summarization and, where justified, multiple EIGRP autonomous systems.

Answer: C

Explanation:

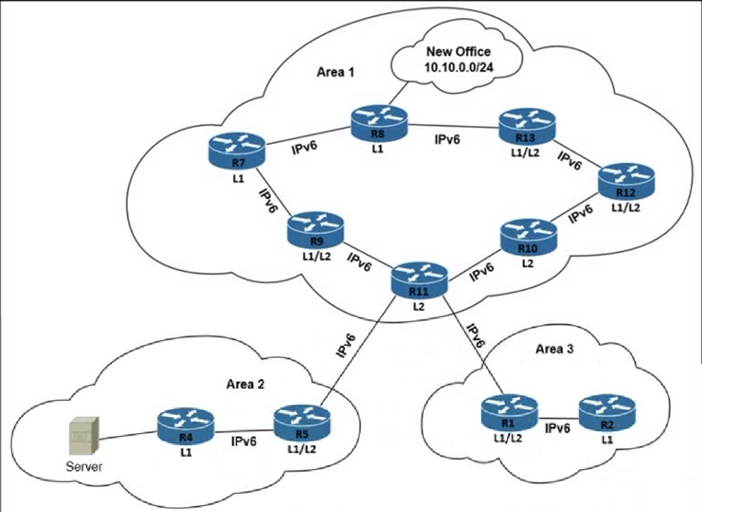

Route leaking on R13 and R9 is required so the Level 1 area can make a better exit decision toward the server. In an IS-IS hierarchy, Level 1 routers know detailed topology only inside their own area. For destinations outside the area, they normally follow the closest attached Level 1/Level 2 router, which can produce suboptimal latency when another exit has a better end-to-end path. Route leaking selectively injects more specific Level 2 reachability information into Level 1, allowing routers in the New Office area to evaluate a better path instead of blindly following the nearest attached-bit exit. Changing metric style on R8 alone does not import the external-area route information needed for better path selection. A static route could force a path but would not be a scalable dynamic IS-IS design. Making R8 Level 1/Level 2 does not solve the need to expose the relevant route through the correct area boundary. Reference topics: IS-IS Level 1 and Level 2, attached bit, route leaking, interarea optimization, latency-aware routing.
