Important OMG-OCUP2-FOUND100 Exam Questions

Answer: B

Explanation:

In UML, Comments are annotations that can be attached to most elements within UML diagrams. Their primary function is not to affect the semantics of the model directly but to provide useful information to anyone reading the model. Comments can help explain or clarify design decisions, make notes about specific parts of the model, or provide any other context necessary for understanding the model better.

The role of Comments in UML is not to enable automatic generation of code comments or to add constraints or semantics to model elements, although they can be associated with model elements to highlight or explain specific attributes or relationships.

UML 2.x Superstructure Specification: This document describes Comments as a way to provide human-readable descriptions and notes that do not impact the execution or structure of the model but are crucial for documentation and understanding.

UML 2.x Infrastructure Specification: Further delineates the role of comments in providing clarifications and additional information useful for model interpretation.

Answer: C

Explanation:

In UML, an initial node is the starting point of an activity thread and represents the start of the flow in an activity diagram.According to the UML 2.5.1 specification, an initial node has no incoming edges and precisely one outgoing edge1. This means that only one activity can feed an initial node at the beginning of an activity thread, which aligns with option C.

The initial node is depicted as a filled circle and is used to show where the control starts within the activity. When the activity is invoked, control tokens are placed on the initial node and can then traverse the outgoing edge to the first action or activity node. The specification clearly states that there should be only one outgoing edge, ensuring that the flow of control is unambiguous at the start of the activity.

For further details and verification, you can refer to the UML 2.5.1 specification, particularly Chapter 15.7, which covers the Activity, ActivityFinalNode, InitialNode, and other related elements2.Additionally, the Object Management Group (OMG) provides resources and guidelines for the UML exams, including the types of questions that may appear and the knowledge areas covered3.

It's important to note that while multiple initial nodes can exist within a single activity diagram, each initial node can only be the source of one outgoing edge, and thus, only one activity can feed each initial node.

Answer: A

Explanation:

Start Node:Represented by a black circle, indicating the starting point of the activity.

Action a:Represented by a rounded rectangle, signifying an action or step within the activity.

Action READY:Another rounded rectangle representing an action.

End Node:A circle with a black dot inside, marking the end point of the activity.

Based on the common elements in both Act1 and Act2:

The activity starts at the designated start node.

It proceeds to action 'a'.

Then it moves to action 'READY'.

Finally, it reaches the end node, signifying completion.

There are no additional branches or loops that would allow for re-starting the activity or re-executing action 'a' multiple times.

Analysis of Other Options:

B . Initial and final nodes are optional...While it's true that initial and final nodes can be implicit in some cases, well-formed activity diagrams typically include them for clarity. Here, both diagrams have them explicitly.

C . In diagram Act1. action a can get executed once...There's no basis to claim a difference in the number of executions of action 'a' between the two diagrams.

D . Diagram Act2 is incomplete...Both diagrams seem complete as they have proper start and end nodes, and the flow goes from start to finish without any ambiguity.

Therefore, considering the structure and execution flow, both Act1 and Act2 will end after the 'READY' action, and no further signals will be accepted, making answer A the most accurate description.

Answer: B

Explanation:

In UML 2, a class diagram is used to depict the structure of a system by showing the system's classes, their attributes, operations (or methods), and the relationships among the classes. The constraint {age >= 18} in the Person class diagram indicates a condition that must hold true for the instances of the Person class whenever they are used in the context of a BankAccount. This constraint is an invariant of the Person class that specifies the rule for the attribute age.

Now, let's consider the provided options and explain why option B is correct:

A . The preferred age to open a bank account is 18 years old or older -- This statement is incorrect because the diagram does not indicate a preference; it indicates a constraint or a rule.

B . Only customers who are 18 years old or older can open a bank account -- This is the correct statement. The {age >= 18} constraint next to the age attribute of the Person class signifies that any instance of Person associated with a BankAccount must be at least 18 years old. Since Person is connected to BankAccount with the role name customer, this implies that only persons who are at least 18 can be customers of a bank account.

C . The age condition should only hold when the setAge(Integer) function is called -- This statement is incorrect because the constraint {age >= 18} is not a condition that applies only when the setAge operation is invoked. Instead, it is a class invariant that must always hold true for any instance of Person.

D . An object of Customer with age set to 18 or greater will raise an exception -- This is incorrect because the UML diagram specifies a constraint, not an exception condition. The constraint ensures validity, not the raising of an exception.

The answer is verified according to the UML 2 Foundation documents, such as the UML 2.5 specification, where class diagrams and constraints are defined. The specification states that constraints are semantic conditions or restrictions expressed in natural language text or in a machine-readable language that must hold true for the system being modeled (UML 2.5 specification, section 7.9).

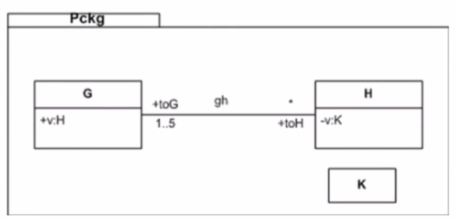

Answer: A

Explanation:

Enumeration literals in UML are used within an enumeration to define a set of named constants. According to the UML specification:

A . This statement is correct. Enumeration literals are indeed immutable, which means once they are defined within an enumeration, their values cannot be changed.

B . Enumeration literals cannot be anonymous; they must be named so that they can be referenced unambiguously within the model.

C . Enumeration literals can be compared for equality. In fact, this is one of their primary uses, to allow for comparison between different values of an enumerated type to determine if they are the same.

D . Enumeration literal names must be unique within their enumeration. They cannot appear more than once as this would cause ambiguity in references to the literals.

The most accurate statement according to the UML 2 Foundation specification is A: EnumerationLiterals are immutable.
