Important Nokia 4A0-D03 Exam Questions

Answer: A

Explanation:

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The EVPN route type used for aliasing and fast convergence in multi-homing is RT-1, the Ethernet Auto-Discovery route. RT-1 has two important forms: Ethernet A-D per Ethernet Segment and Ethernet A-D per EVI. These routes advertise reachability to a multi-homed Ethernet Segment and to a specific EVPN instance on that segment. Remote PEs use this information for aliasing, meaning they can forward traffic toward any eligible PE attached to the same Ethernet Segment, even when a specific MAC was advertised by only one PE. RT-1 also supports fast convergence because withdrawal of Ethernet A-D routes quickly informs remote PEs that an attachment path or PE is no longer valid, avoiding slow MAC aging as the primary failure-detection mechanism. RT-4 Ethernet Segment routes are related to multi-homing, but their main function is Ethernet Segment discovery and Designated Forwarder election. RT-2 advertises host MAC/IP reachability, and RT-3 builds multicast/BUM replication lists. Therefore, RT-1 is the precise answer for aliasing and fast convergence. Reference: EVPN multi-homing route types, Ethernet Auto-Discovery, aliasing and convergence behavior.

Answer: A

Explanation:

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

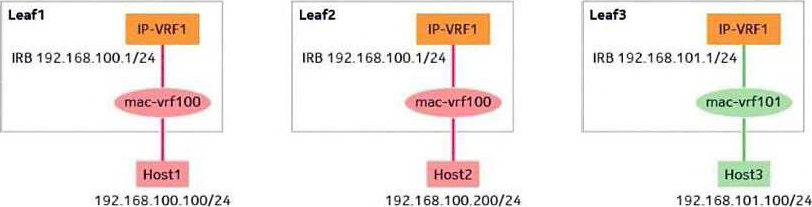

In interface-less symmetric L3 EVPN routing, hosts in a subnet may be attached to different leaf routers, while inter-subnet forwarding is performed through the IP-VRF using VXLAN routed interfaces. The ingress and egress PEs both participate in L3 forwarding, and the routed VXLAN interface provides the per-IP-VRF overlay data-plane construct needed for symmetric routing. The IRB interfaces on the local MAC-VRFs must advertise learned local host routes so that remote PEs have the necessary host reachability information. The MAC-VRFs also need the appropriate EVPN control-plane configuration so host MAC/IP information can be exchanged, while the IP-VRF participates in L3 VPN-style route exchange for routed reachability. Option A is false because anycast gateway is not optional in this design for Leaf1 and Leaf2. Anycast gateway allows the same default-gateway IP and virtual MAC behavior to exist consistently on multiple leaves serving the same subnet. Without it, host default-gateway behavior would be inconsistent and traffic mobility across the fabric would break expected distributed gateway operation. Reference: interface-less symmetric routing, IRB, anycast gateway, routed VXLAN interface.

Answer: C

Explanation:

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

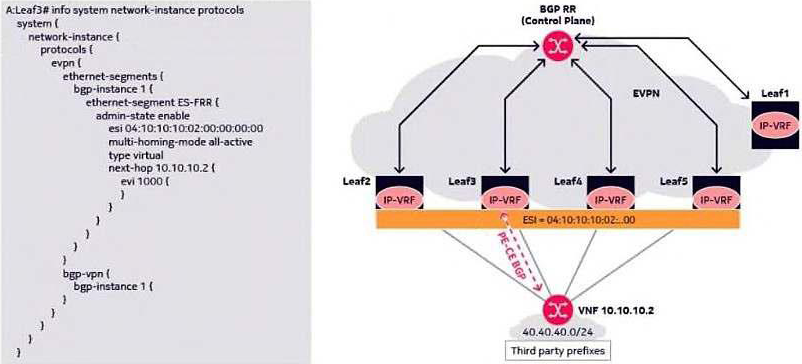

The exhibit describes a Layer 3 multi-homing scenario where the Ethernet Segment is associated with an IP-VRF and the configuration references an EVI value of 1000. The segment is configured with all-active multi-homing, allowing multiple attached leaf routers to advertise reachability for the same external L3 next-hop or third-party prefix attachment. In this model, the Ethernet Segment represents the shared L3 attachment and is used by EVPN to associate remote prefix reachability with the multi-homed segment. The incorrect statement is that a LAG must be configured on the connected leaf routers and the host. That requirement is specific to many Layer 2 all-active host attachment designs, where the host commonly uses LACP toward multiple leaf routers and the leaf LAG subinterfaces are associated with the Ethernet Segment. In Layer 3 multi-homing, the attached device can be a router or VNF, and the EVPN ES association can be used for L3 prefix reachability without mandating that the host side be configured as a LAG. Reference: L3 EVPN multi-homing, EVI association, all-active Ethernet Segment behavior.

Answer: B

Explanation:

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

For Layer 2 all-active EVPN multi-homing on SR Linux, the Ethernet Segment configuration is the control-plane anchor that binds the redundant access attachment to EVPN. The relevant LAG subinterfaces must be associated with the Ethernet Segment so that the PE can advertise the segment correctly and apply split-horizon and aliasing behavior. The Ethernet Segment must also be administratively enabled; otherwise, the PE will not participate properly in ES discovery and DF procedures. The multi-homing mode must be set to all-active to permit forwarding through multiple attached leaf routers and support host-side LAG operation. The false statement is option B. The Ethernet Segment Identifier has a defined structure, and the blanket statement that the 2nd through 7th octets ''must not be all zeros'' is not a valid requirement as stated. What matters operationally is that the ESI uniquely identifies the same multi-homed Ethernet Segment across participating PEs and is consistently configured where required. The ESI must be non-zero as a meaningful segment identifier, but the specific octet restriction in the option is not the SR Linux all-active configuration rule. Reference: SR Linux L2 EVPN all-active multi-homing, Ethernet Segment configuration, LAG association.

Answer: D

Explanation:

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In active-standby, or single-active, Layer 2 EVPN multi-homing, only one PE is active for the Ethernet Segment and MAC-VRF at a time. Leaf1 and Leaf2 participate in DF election, and the elected DF becomes the active forwarding PE for that service attachment. Because this is not all-active multi-homing, the non-DF must not forward traffic to the host for the protected service. This prevents duplicate frames, incorrect MAC learning, and loops on the access side. The DF accepts traffic from the host and forwards BUM traffic received from remote PEs toward the host-facing segment. Option D is false because it claims that the non-DF can forward unicast traffic from remote PEs to the host. In single-active operation, remote peers must direct traffic to the active PE, and the standby PE remains ready to take over only after DF state changes. This is the operational distinction from all-active multi-homing, where more than one PE may be used for forwarding depending on the traffic type and aliasing behavior. Reference: single-active L2 EVPN multi-homing, DF role, non-DF forwarding suppression.
