Important Palo Alto Networks SD-WAN-Engineer Exam Questions

Answer: C

Explanation:

In Prisma SD-WAN, application performance is monitored through distinct metrics that separate network health from application health. The provided graph displays Network Transfer Time (NTT) in blue and Server Response Time (SRT) in orange. NTT measures the round-trip time of packets traversing the WAN fabric, while SRT measures the time elapsed from when the server receives a request to when it sends the first response packet.

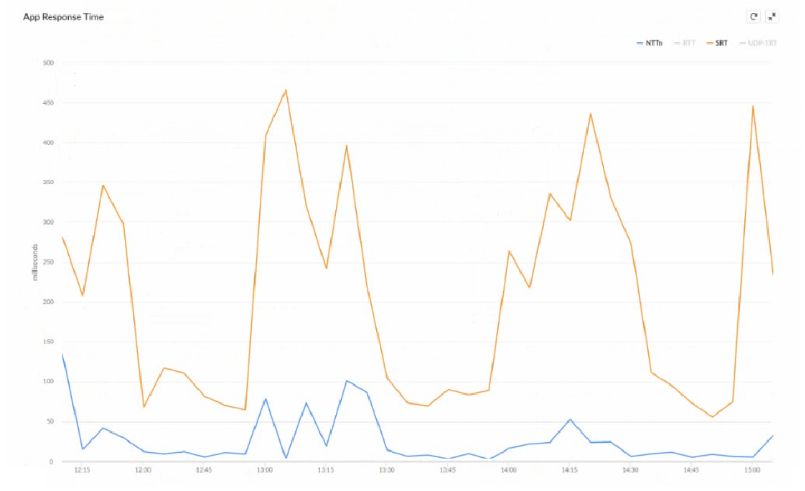

Analysis of the telemetry data shows that the NTT (blue line) remains consistently low and stable, generally staying below 100 milliseconds throughout the capture period. This indicates that the SD-WAN path and underlying network circuits are not the source of the latency. Conversely, the SRT (orange line) exhibits significant and erratic spikes, reaching as high as 450 to 475 milliseconds. These spikes occur while the network latency (NTT) remains flat.

Because the latency increases are isolated to the SRT metric, the root cause is confirmed to be on the Application Server side. This pattern typically suggests that the server is struggling with resource exhaustion, high CPU utilization, or database query delays during peak processing times. For a real-time application, these SRT spikes translate directly to jitter and 'lag' for the end-user. By distinguishing between these two metrics, Prisma SD-WAN allows network administrators to prove that the network is performing within SLA and shift the troubleshooting focus to the application or server management teams, significantly reducing mean time to innocence (MTTI).

Answer: A, C

Explanation:

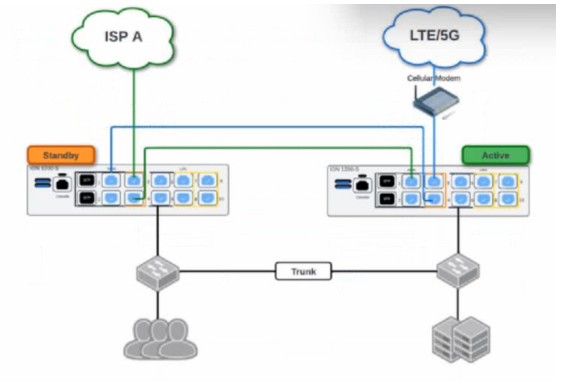

Prisma SD-WAN High Availability (HA) for branch ION devices, particularly the Gen-2 ION 1200-S, is designed to provide '100% WAN Capacity' preservation during a hardware or power failure. This is achieved through the use of Bypass Pairs (Fail-to-Wire). In the provided topology, the ISP A and LTE/5G circuits are cross-connected using the bypass ports (typically ports 3 and 4 on the ION 1200-S).

When the 'Active' ION device loses power, the internal physical relays in its bypass ports transition to a closed state, effectively creating a physical bridge between the ports. In this scenario, the LTE/5G signal---which enters the Active ION's port 4---is mechanically bridged to port 3, allowing it to pass through to port 4 of the Standby ION. Simultaneously, ISP A is already connected to the Standby ION. Consequently, once the Standby device completes its transition to the 'Active' state, it has physical access to both WAN circuits, validating Statement A.

Regarding the LAN transition, Prisma SD-WAN does not use standard VRRP for ION-to-ION HA; instead, it uses a proprietary Control Plane HA mechanism. When the failover occurs, the newly active ION takes over the IP addresses of all configured Switch Virtual Interfaces (SVIs) and LAN interfaces. To ensure the downstream Layer 2 infrastructure (like the LAN switches shown in the diagram) updates its MAC address tables to point to the new physical hardware for those IPs, the newly active ION immediately broadcasts a Gratuitous ARP (GARP). This ensures that LAN traffic is correctly steered to the new device without a significant timeout, validating Statement C.

Answer: A, B

Explanation:

Prisma SD-WAN licensing is structured to provide flexibility while ensuring that all components of the secure fabric are correctly accounted for. To meet the requirements of this organization, we must calculate the necessary subscriptions for both the data center hubs and the distributed branch network.

First, we address the Data Center Subscriptions. The organization has two main geographically separate data centers and one small data center, all of which require High Availability (HA). In a Prisma SD-WAN deployment, HA at a site is achieved by deploying two ION devices in a cluster. Palo Alto Networks licensing requires a separate Data Center subscription for each ION device acting as a hub. Therefore, with three data center locations (2 main + 1 small) each requiring an HA pair (2 devices per site), a total of six data center subscriptions (Option A) are required to license all six hub appliances.

Second, we address the Branch Subscriptions. The organization has 50 branches but lacks accurate measurements of actual bandwidth consumption. Palo Alto Networks' best practice for such scenarios is the Aggregate Bandwidth Subscription model (Option B). Instead of purchasing a fixed 'Branch subscription per site' (Option D)---which requires knowing the exact throughput needs for every individual location---the aggregate model allows the customer to purchase a total pool of bandwidth (e.g., 5 Gbps) that is shared across all 50 branch sites.

This 'pay-as-you-grow' approach is ideal when consumption patterns are unknown or inconsistent. As branches utilize the bandwidth, it is deducted from the central pool. This avoids the risk of over-provisioning licenses at low-usage sites or under-provisioning at high-usage sites. Together, the six DC subscriptions and the aggregate bandwidth pool provide a fully licensed, HA-capable SD-WAN environment that aligns with Palo Alto Networks' scaling recommendations.

Answer: B

Explanation:

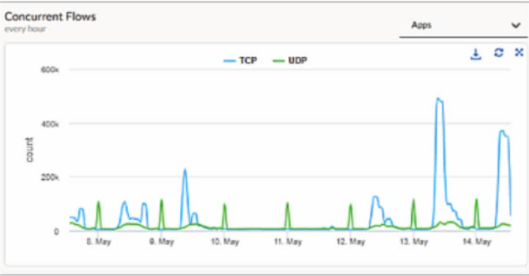

When a Prisma SD-WAN ION device triggers the DEVICESW_CONCURRENT_FLOWLIMIT_EXCEEDED incident, it indicates that the number of active sessions has reached the hardware or software-defined capacity limit of that specific appliance. In the provided graph, we can see a massive spike in concurrent TCP flows on May 13th, reaching nearly 500k, which is a clear indicator of anomalous behavior---likely a 'top talker' host, a malware outbreak, or a misconfigured application generating excessive connections.

To identify the specific host responsible for this surge, administrators should navigate to Monitor Activity Flows. This interface, commonly known as the Flow Browser, provides the most granular visibility into real-time and historical session data within the Prisma SD-WAN fabric. Unlike 'Transaction Stats,' which provide high-level summaries, or 'New Flows,' which only show the rate of session initiation, the Flows view allows an engineer to filter and sort the active session table by metadata such as Source IP, Destination IP, Application, and Site.

By utilizing the Flow Browser, an administrator can quickly group flows by 'Source IP' to pinpoint exactly which internal host is consuming the most flow table entries. This is the standard 'Day 2' operational workflow for troubleshooting performance and capacity incidents. While running a tcpdump (Option A) is a valid diagnostic for packet-level analysis, it is inefficient for identifying a single host among hundreds of thousands of flows and can further tax the device's CPU during a high-load event. The Monitor Activity Flows tool is designed specifically for this type of scale, providing the necessary visibility to remediate the flow limit exhaustion and restore normal network operations.

Answer: C

Explanation:

Comprehensive and Detailed Explanation

The stability of VPN tunnels in the Prisma SD-WAN + Prisma Access integration relies on standard IPSec mechanisms.

Dead Peer Detection (DPD): The CloudBlade configuration automatically enables DPD on the IPSec tunnels it provisions.

Mechanism: DPD is a standard keepalive mechanism where the ION device sends periodic 'R-U-THERE' messages to the Prisma Access gateway (and vice versa). If no acknowledgment is received after a specific count/timer, the ION marks the tunnel as down and attempts to re-key or switch to a backup path.

Synthetic Probes (B): While Synthetic Probes (part of ADEM or Path Quality monitoring) can be configured to measure latency/loss, the fundamental mechanism that keeps the IPSec security association (SA) active and detects link failure is DPD, not an application-layer probe.
