Important NetApp NS0-593 Exam Questions

Answer: B

Explanation:

To create a packet trace for all clients on the 192.168.9.0/24 subnet, you have to run the packet trace on the interface that has an IP address in the same subnet. According to the exhibit, the only interface that matches this criterion is e2a-100, which has an IP address of 192.168.3.1/24. The other interfaces have IP addresses in different subnets, such as 10.92.4.202/16, 10.91.3.132/24, 10.95.7.114/24, and 10.92.6.200/16. Therefore, the correct answer is B. e2a-100.Reference=How to capture packet traces on ONTAP 9.10+ systems,How to capture packet traces (tcpdump) on ONTAP 9.2 to 9.9 systems,How to download captured packet traces from ONTAP

Answer: B

Explanation:

The error message indicates that the ONTAP Select Deploy VM cannot connect to the vCenter server due to a network issue1.

One possible cause of this issue is that the IP address of the ONTAP Select Deploy VM is conflicting with another device on the same network2.

To correct this problem, you need to change the IP address of the ONTAP Select Deploy VM to a unique and valid address that can reach the vCenter server2.

You can change the IP address of the ONTAP Select Deploy VM by using the Deploy web interface or the Deploy CLI2.

After changing the IP address, you need to restart the Deploy services and re-add the vCenter server to the inventory2.Reference:

1: Credential authentication failed with: HostConnectionFailed, NetApp Knowledge Base

2: Changing the IP address of the Deploy VM, ONTAP Select 9 Documentation Center

Answer: A

Explanation:

To access a LUN on a FAS 8300 system from a VMware ESXi server through the FC protocol, the customer must configure the FC service on the SVM that owns the LUN. The FC service enables the SVM to act as an FC target and communicate with the FC initiators on the host. Without the FC service, the LUN will not be visible to the host, even if the LUN is mapped to an igroup and the FC LIFs are up. The exhibit shows that the FC service is not configured on the SVM, as the output of the commandvserver fcp initiator show -vserver SVM1is empty. Therefore, the reason for the problem is that the FC service has not been configured on the SVM.Reference=Configure an SVM for FC,Create an FC protocol service,Single IQN iSCSI session with ESXi on ONTAP when igroup has two IQNs

Answer: A, D

Explanation:

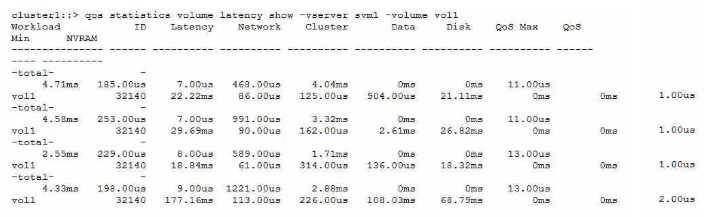

The error message ''wafl.cp.toolong:error'' indicates that a WAFL consistency point (CP) took longer than 30 seconds to complete. A CP is a process that flushes the data from the NVRAM buffer to the disk.A long CP can cause latency and performance issues for the system1

One possible cause for a long CP is excessive SSD load causing the wear leveling to become unbalanced. Wear leveling is a technique that distributes the write operations evenly across the SSD cells to extend the lifespan of the SSD.If some SSD cells are written more frequently than others, the wear leveling will become unbalanced and the SSD performance will degrade2

Another possible cause for a long CP is an SSD disk performing garbage collection to create a dense data layout. Garbage collection is a process that reclaims the space occupied by invalid or deleted data on the SSD.Garbage collection can improve the write performance and storage efficiency of the SSD, but it can also consume CPU and disk resources and cause long CPs3

A disk failing or being failed is not a likely cause for a long CP, because the system will automatically mark the disk as failed and remove it from the aggregate.The system will also initiate a disk reconstruction or a RAID scrub to restore the data protection and redundancy4

There is no evidence that the system has SATA HDDs, so there is no reason to assume that there is excessive SATA HDD load.Moreover, SATA HDDs are usually used for secondary or backup storage, not for primary or performance-sensitive workloads5

1: Are long Consistency Points (wafl.cp.toolong) normal?- NetApp Knowledge Base2: How to troubleshoot SSD performance issues - NetApp Knowledge Base3: How to troubleshoot SSD garbage collection issues - NetApp Knowledge Base4: How to troubleshoot disk failures and replacements - NetApp Knowledge Base5: ONTAP 9 - Hardware Universe - The Open Group

Answer: D

Explanation:

NFSv4 is a network file system protocol that supports security, performance, and scalability features.NFSv4 uses ID mapping to ensure that the permissions of files and directories are consistent across different NFSv4 servers and clients1

ID mapping is the process of translating the user and group identifiers (UIDs and GIDs) of the local system to the user and group names (user@domain and group@domain) of the remote system, and vice versa.ID mapping is done by the idmapd service, which uses the /etc/idmapd.conf file to determine the domain name of the system2

ID mapping requires that the NFSv4 server and client have the same domain name configured in the /etc/idmapd.conf file.If the domain names do not match, the idmapd service cannot map the UIDs and GIDs to the user and group names, and the permissions of the files and directories will be shown as nobody:nobody, which is the default anonymous user3

Therefore, if a customer enabled NFSv4.0 on an SVM and changed the client mount from NFSv3 to NFSv4, and found that the directory owner was changed from root to nobody, the most likely cause is that the ID mapping domains do not match between the client and server.The customer should check and correct the /etc/idmapd.conf file on both systems, and restart the idmapd service and remount the NFSv4 share4

1: ONTAP 9 - Network File System (NFS) - The Open Group2: ONTAP 9 - NFSv4 and NFSv4.1 Enhancements - The Open Group3: NFSv4 mount incorrectly shows all files with ownership as nobody:nobody - Red Hat Customer Portal4: NFSv4 mountpoint shows incorrect ownerships as nobody:nobody in CentOS/RHEL - The Geek Diary
