Important HPE7-J01 Exam Questions

Answer: B

Explanation:

To provide automated orchestration and business continuity for VMware virtual machines in a disaster recovery scenario, the industry-standard solution integrated with HPE storage is VMware Live Site Recovery (formerly known as VMware Site Recovery Manager or SRM).

When a customer utilizes Asynchronous Remote Copy on HPE Alletra 9000 arrays, the storage layer handles the data replication between the production and recovery sites. However, the storage array alone cannot automate the re-registration of virtual machines, the mapping of network port groups, or the specific power-on sequencing required for complex applications at the secondary site. VMware Live Site Recovery serves as the orchestration engine that bridges this gap. It works in conjunction with a Storage Replication Adapter (SRA) provided by HPE. The HPE SRA allows the VMware software to communicate directly with the Alletra 9000 arrays to initiate tasks such as promoting recovery volumes to a read-write state, taking temporary snapshots for DR testing, and automating the 'failover' and 'failback' workflows.

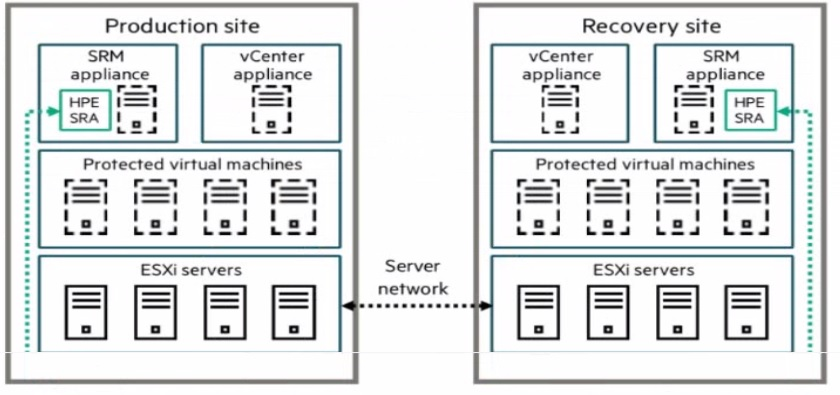

As shown in the exhibit (image_6601ef.jpg), a complete solution requires an SRM appliance and a vCenter appliance at both the production and recovery sites. This architecture ensures that even if the primary site is completely lost, the recovery site has all the necessary metadata and orchestration instructions to bring the business-critical VMs online with minimal manual intervention. Option A (Lifecycle Management) is for patching and updates, Option D (Storage DRS) is for load balancing within a cluster, and Option C refers to operational monitoring rather than disaster recovery orchestration. For a customer already invested in Alletra 9000 Remote Copy, VMware Live Site Recovery is the 'Better Together' choice for achieving low Recovery Time Objectives (RTO).

Answer: B

Explanation:

The HPE Alletra MP B10000 (Block storage) represents a paradigm shift in HPE's high-end storage strategy by utilizing a modular, disaggregated architecture. One of the most significant technical advantages of this platform is its Advanced Erasure Coding and the way it handles data layout across the disaggregated NVMe capacity.

According to the HPE Alletra MP technical deep-dive documents, the system does not use traditional fixed RAID groups. Instead, it uses a massive, distributed stripe mechanism. The software is capable of varying the stripe width dynamically based on the number of available drives and nodes in the cluster. This allows the system to achieve industry-leading capacity efficiency. Specifically, the system can utilize stripe sizes ranging from a minimum of 16+3 to a maximum of 146+3. This high data-to-parity ratio (e.g., 146 data segments for every 3 parity segments) allows customers to realize significantly higher usable capacity from their raw NVMe investment compared to traditional RAID 6 (6+2 or 8+2) or even typical erasure coding in competitive mid-range arrays.

Option A is technically incorrect because, in the Alletra MP, data is typically committed to persistent NVMe media or SCM (Storage Class Memory) in a way that doesn't rely on legacy battery-backed volatile DRAM in the same manner as older controllers. Option C is incorrect because Locally Decodable Erasure Coding is actually designed to reduce rebuild times by requiring fewer IOPS to reconstruct a missing fragment. Option D, while 'Workload Simulator' is a tool used in sizing (NinjaStars), the most 'important' architectural feature listed that differentiates the Alletra MP's efficiency is its unique and massive scaling stripe width.

Answer: C

Explanation:

HPE GreenLake for File Storage is built upon a disaggregated, shared-everything (DASE) architecture powered by VAST Data software. The replication mechanism in this environment is fundamentally different from traditional block-based replication. Instead of replicating entire volumes or LUNs, HPE GreenLake for File Storage performs replication at the directory level.

According to the HPE GreenLake for File Storage Administrator Guide, the system utilizes a snapshot-based asynchronous replication engine. This allows for highly flexible topologies, including N:1 (fan-in) and 1:N (fan-out) configurations, which are essential for modern distributed data environments and centralized backup strategies. Because the solution is file-based, it leverages 'Views' (or shares) that point to specific directory paths. Protection policies and snapshot schedules are applied directly to these paths, ensuring that only the specific datasets required for disaster recovery are replicated.

Option B is a common point of confusion; while the system is inherently 'reduction-aware' and uses similarity-based data reduction (deduplication and compression) to save space on the physical media, the replication process itself focuses on the metadata and unique data blocks associated with the directory-level snapshots. Option A is incorrect because, in an asynchronous replication relationship, the destination is typically Read-Only until a failover or clone operation is initiated. Option D is incorrect as the management of protected paths follows strict pairing rules to prevent configuration conflicts. Thus, the support for flexible fan-in/fan-out topologies and granular directory-level protection (Option C) is the defining characteristic of this enterprise file solution.

Answer: C

Explanation:

Fibre Channel over IP (FCIP), as defined by IETF RFC 3821, is a tunneling protocol used to interconnect Fibre Channel (FC) storage area networks (SANs) over long distances using standard IP infrastructure. One of the primary architectural reasons for choosing FCIP over native Fibre Channel extension is its ability to overcome distance constraints.

Native Fibre Channel is governed by a flow-control mechanism called Buffer-to-Buffer (BB) Credits. In a native FC link, a frame cannot be sent until the sender has a 'credit' from the receiver. As the distance between sites increases, the time it takes for an acknowledgment (and thus the return of a credit) to travel back significantly increases. This creates a 'protocol drop-off' where performance collapses once the distance exceeds the available buffer memory. In contrast, FCIP encapsulates FC frames into TCP/IP segments. TCP/IP uses a different flow-control mechanism called windowing.

By moving the transport to TCP/IP, the storage traffic is no longer strictly bound by the physical light-propagation constraints of the FC buffer-credit mechanism. While latency still increases with distance (governed by the speed of light in fiber), FCIP provides no fixed protocol distance limitation, making it possible to replicate data across continents or globally (asynchronous replication) as long as the IP network provides a path. Option D is incorrect because the 'tunnel' handles the delivery, effectively shielding the FC fabric from the long-haul buffer requirement. Option A is incorrect because the encapsulation process in FCIP always adds more latency than 'transparent' optical extensions like DWDM. Therefore, the architectural value of FCIP is its ability to provide 'unlimited' distance connectivity using existing WAN infrastructure.

Answer: B

Explanation:

HPE CloudPhysics is a SaaS-based analytics platform integrated into the HPE GreenLake Data Services Cloud Console (DSCC) that provides deep insights into virtualized infrastructure. It uses a visual metaphor called 'cards' to present focused analytics for specific use cases.

When a customer is concerned about storage efficiency and the overall impact of VM workloads, the Simulator for VM Rightsizing (also known as the VM Rightsizing Simulator) is the primary tool for analysis. This card specifically identifies inefficiencies such as over-provisioned or 'oversized' virtual machines. By analyzing the actual resource utilization (CPU, memory, and I/O) versus the allocated capacity, the rightsizing simulator can highlight which VMs are consuming excessive resources without operational need.

Reviewing this card first is critical because storage efficiency is often compromised by 'virtual sprawl' and bloated VM templates that waste disk space and IOPS on the backend HPE Alletra arrays. While the Shared Storage Analysis card (Option C) provides visibility into datastore contention and performance, the Simulator for VM Rightsizing provides the most direct answer to 'efficiency' concerns by identifying the exact VMs that can be trimmed down to reclaim stranded capacity. Correcting VM sizing at the hypervisor level is often the most effective first step in optimizing the performance and capacity return on investment of the underlying storage hardware.
