Important AutoDesk ACP-01101 Exam Questions

Answer: D

Explanation:

the command that should be used to create a new drawing file from selected objects isWBLOCK.This command allows you to export a group of objects as a drawing, which can be inserted into other drawings as a block2.

Answer: B

Explanation:

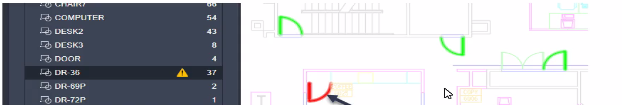

Understanding the Count Tool Alert:

In AutoCAD, the Count tool is used to quantify the number of block instances within a drawing.

A yellow error alert triangle next to the block count indicates an inconsistency or issue with the blocks in the drawing.

Common Reasons for Alert:

The block is on the wrong layer.

The block is exploded.

The block does not have its color assigned to BYLAYER.

The block has a different scale factor.

Identifying the Issue:

Option A: The block being on the wrong layer does not typically trigger a count alert.

Option C: The color assignment to BYLAYER does not affect the block count.

Option D: Different scale factors usually do not trigger a count alert unless the block definition is altered.

Option B: Exploded blocks result in losing the block definition, causing AutoCAD to alert the user of incomplete blocks, which matches the scenario depicted in the exhibit.

Conclusion:

The alert is due to the block being exploded, resulting in a mismatch between the expected block count and the actual block instances recognized by AutoCAD.

AutoCAD Help Documentation on Block Counting and Alerts.

User manuals and community forums discussing common issues with block counts.

Answer: B

Explanation:

Check the Active Space:

The Annotation Scale tool is only visible when the user is in model space.

Ensure that you are currently working in model space by checking the status bar or the workspace tab.

Switch to Model Space:

If you are in paper space (layout view), switch to model space by double-clicking inside a viewport or selecting the 'Model' tab at the bottom of the drawing area.

Verify the Annotation Scale Tool:

The Annotation Scale tool should now be visible in the status bar.

If it is still not visible, right-click on the status bar, go to 'Customization,' and ensure 'Annotation Scale' is checked.

AutoCAD Documentation on Annotation Scale: Annotation Scale

Thank you for your engagement! Join our VIP AI Discord community at SmartPrompt for AI news and custom prompts for passive income opportunities with business automation.

Answer: B

Explanation:

polyline is a connected sequence of line segments created as a single object that can contain a width. You can change the width of a polyline by using the PEDIT command.

Based on3and4, LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only. PLINEWID is a system variable that sets a default polyline width for new polylines. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices.

https://www.roadlesstraveledstore.com/how-do-i-change-the-width-of-a-polyline-in-autocad/

https://knowledgeburrow.com/how-do-i-change-the-width-of-a-polyline-in-autocad/

Answer: B

Explanation:

When dealing with tables in AutoCAD, especially when you need to format or merge cells, the process generally involves a few clear steps:

Select Cells to Merge: Select the cells you want to merge.

Merge by Row: After selecting, merge the cells in the row. This consolidates the selected cells into a single cell which is useful for labeling a total row.

Steps to achieve this:

Click on the first cell you want to merge.

Hold down the shift key and click the last cell in the row to select all the cells you want to merge.

Right-click and select 'Merge Cells' and then choose the option to merge by row.
