Important ARDMS AE-Adult-Echocardiography Exam Questions

Answer: A

Explanation:

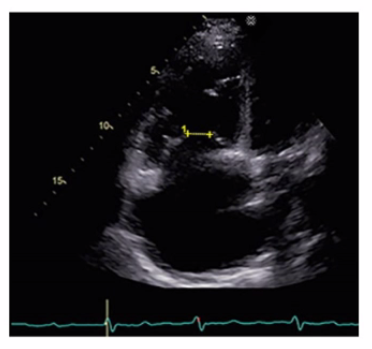

The image shows incomplete leaflet apposition of the tricuspid valve leaflets with a visible gap, indicating malcoaptation. This is a common cause of tricuspid regurgitation due to leaflet tethering or annular dilation.

Normal coaptation would show complete leaflet closure. Stenosis would show restricted leaflet motion but not malcoaptation. Endocarditis involves vegetations and leaflet destruction, which are not evident here.

This echocardiographic feature is described in the 'Textbook of Clinical Echocardiography, 6e', Chapter on Tricuspid Valve Disease20:330-335Textbook of Clinical Echocardiography.

Answer: C

Explanation:

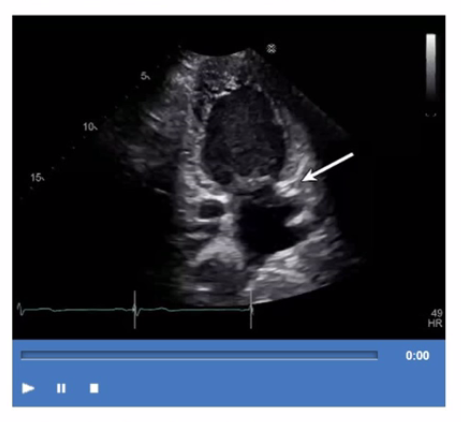

The arrow points to the coronary sinus, which is a venous structure located posteriorly in the atrioventricular groove, emptying into the right atrium. It appears as a circular anechoic structure near the left atrium in echocardiographic images.

Left lower pulmonary vein enters the left atrium more superiorly. Descending aorta is posterior to the heart but not in this location. Left atrial appendage is an anterior finger-like projection of the left atrium, separate from the coronary sinus.

This anatomy is described in the 'Textbook of Clinical Echocardiography, 6e', Chapter on Cardiac Venous Anatomy20:140-145Textbook of Clinical Echocardiography.

Answer: D

Explanation:

Intravenous drug use is a major risk factor for infective endocarditis, particularly involving the tricuspid valve and sometimes left-sided valves. Symptoms like fever, flu-like illness, dyspnea, and chest pain suggest possible septic emboli or valve destruction.

Echocardiographic findings associated with endocarditis include mobile echogenic masses attached to valve leaflets (vegetations), valve thickening, or destruction. These findings are diagnostic and guide treatment.

Aortic dissection, hypertrophic cardiomyopathy, and mitral valve prolapse can present with different clinical features and echocardiographic findings not consistent with infectious vegetations.

These clinical and echocardiographic correlations are detailed in the ASE guidelines on infective endocarditis and the 'Textbook of Clinical Echocardiography'16:Textbook of Clinical Echocardiography, 6ep.470-47512:ASE Infective Endocarditis Guidelinesp.380-390.

Answer: D

Explanation:

Comprehensive and Detailed Explanation From Exact Extract:

The left ventricular dP/dt is a measure of the rate of rise in left ventricular pressure during isovolumic contraction, which reflects systolic function. It is derived from Doppler echocardiography by measuring the time interval between mitral regurgitant jet velocities of 1 m/s and 3 m/s. Using the simplified Bernoulli equation, the pressure gradient at each velocity is calculated, and the rate of pressure rise (dP/dt) is calculated by dividing the pressure difference by the time interval between these velocities.

A normal left ventricular dP/dt is generally considered to be greater than 1200 mmHg/s. Values lower than this indicate impaired systolic function, as the ventricle is slower to generate pressure during contraction.

For example, a measured time interval of 36 milliseconds (0.036 seconds) between the MR velocities of 1 and 3 m/s corresponds to a dP/dt of approximately 889 mmHg/s, which is mildly reduced, indicating some systolic dysfunction.

The exact extract from the 'Textbook of Clinical Echocardiography, 6e' states that normal dP/dt values are typically above 1000 mmHg/s, with >1200 mmHg/s considered a robust indicator of normal systolic function. This measure is useful but requires a measurable mitral regurgitation jet and consistent alignment of the ultrasound beam. Variability in measurement can occur based on technical factors, but the dP/dt remains a useful parameter to quantify systolic function noninvasively.

Answer: A

Explanation:

Comprehensive and Detailed Explanation From Exact Extract:

Visualization of a patent ductus arteriosus (PDA) typically requires imaging planes that include the aortic arch and pulmonary artery, which are well seen from the suprasternal notch window and the basal parasternal short axis view.

The suprasternal notch window provides a longitudinal view of the aortic arch and adjacent pulmonary artery, where the PDA is located. The basal parasternal short axis at the level of the great vessels can also visualize flow through the PDA using color Doppler.

Other views like parasternal long axis and apical views are less optimal for direct PDA visualization.

This is detailed in the 'Textbook of Clinical Echocardiography, 6e', Chapter on Congenital Heart Defects and PDA Imaging20:370-375Textbook of Clinical Echocardiography.
